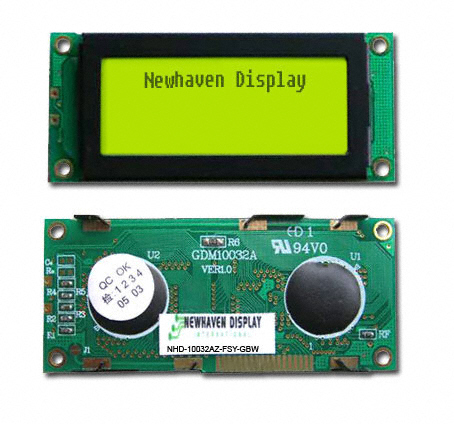

NHD-10032AZ-FSY-GBW

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 100X32 Y/G TRANSFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 100X32 Y/G TRANSFL

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Dot Pixels [x]	Dot Pixels [y]	Backlight	Viewing Area [z]	Viewing Area [y]	Dot Pitch [y]	Dot Pitch [x]	Display Mode	Dot Size [custom]	Dot Size [custom]	Display Type
Newhaven Display Intl NHD-10032AZ-FSPG-YBW	Parallel 8-Bit	100	32	LED - Green	18.4 mm	46 mm	0.48 mm	0.43 mm	Transflective	0.38 mm	0.43 mm	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-10032AZ-FSY-GBW	Parallel 8-Bit	100	32		18.4 mm	46 mm	0.48 mm	0.43 mm	Transflective	0.38 mm	0.43 mm	STN - Super-Twisted Nematic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective STN - Super-Twisted Nematic Parallel, 8-Bit 100 x 32
