IMX101J-TL
ActivePower Integrations

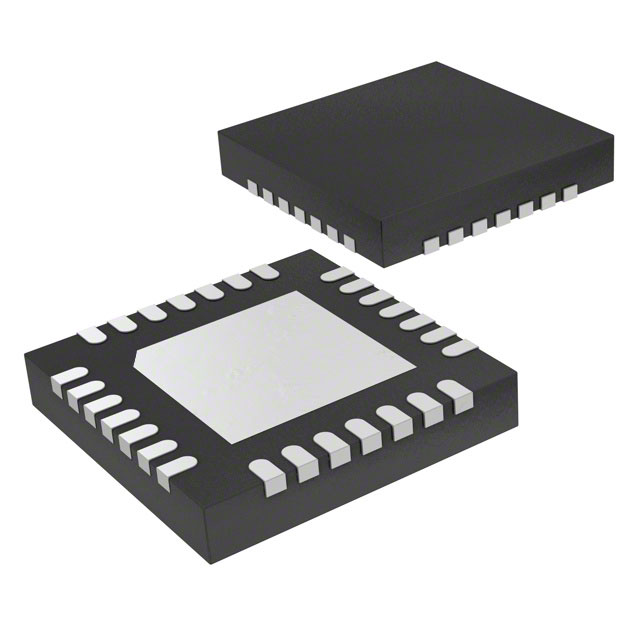

IC LED DRIVER CTRLR PWM 28QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMX101J-TL
ActivePower Integrations
IC LED DRIVER CTRLR PWM 28QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMX101J-TL |
|---|---|
| Applications | Backlight |
| Dimming | Analog, PWM |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (5x5) |
| Topology | Flyback |
| Type | DC DC Controller |
| Voltage - Output [Max] | 22 V |
| Voltage - Output [Min] | 3 V |
| Voltage - Supply (Max) [Max] | 5.25 V |
| Voltage - Supply (Min) [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 100 | $ 0.56 | |||
| 1000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 100 | $ 0.56 | |||
| 1000 | $ 0.48 | |||
| Tape & Reel (TR) | 2000 | $ 0.48 | ||
| 10000 | $ 0.41 | |||
Description
General part information
IMX101 Series
LED Driver IC 1 Output DC DC Controller Flyback Analog, PWM Dimming 28-QFN (5x5)
