09455459010
ActiveHARTING Technology Group

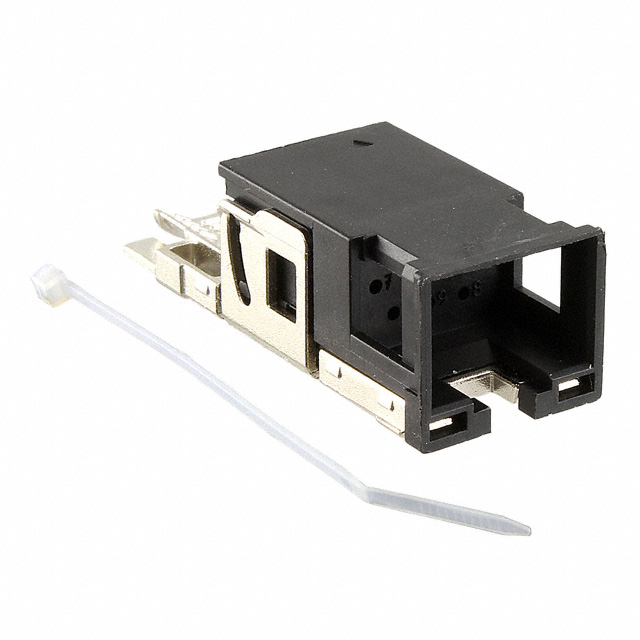

CONN INSERT MALE HSG 10POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09455459010
ActiveHARTING Technology Group
CONN INSERT MALE HSG 10POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09455459010 |
|---|---|
| Connector Type | Insert, Male Pins |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Shielded |
| Insulation Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.06 | |
| 10 | $ 20.45 | |||
| 25 | $ 19.17 | |||
| 50 | $ 18.26 | |||
| 100 | $ 17.38 | |||
| 250 | $ 16.30 | |||
| 500 | $ 15.52 | |||
Description
General part information
094554 Series
10 Rectangular Connectors - Housings Insert, Male Pins
