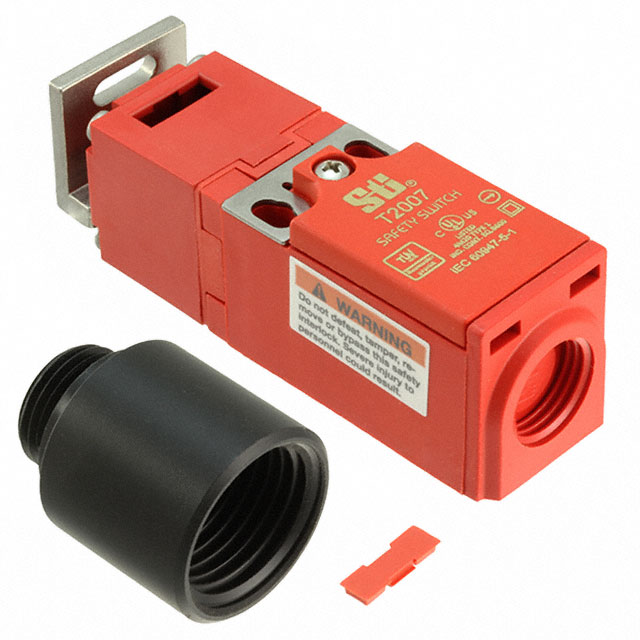

T2007-11SM
ActiveOmron Electronics Inc-EMC Div
INTERLOCK NON-LOCKING DPST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T2007-11SM
ActiveOmron Electronics Inc-EMC Div
INTERLOCK NON-LOCKING DPST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T2007-11SM |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | cULus, CE |
| Circuit | DPST-NO/NC |
| Conduit Thread Size | M16 |
| Current Rating (Amps) | 2 A, 5 A |
| Holding Force | 612 gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Termination Style | Screw Terminal |
| Type | Non-Locking |
| Voltage Rating | 100 VAC, 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 107.22 | |
| 5 | $ 105.75 | |||
| 10 | $ 98.41 | |||
| 25 | $ 92.53 | |||
| 50 | $ 85.19 | |||
| 100 | $ 76.50 | |||
Description
General part information
T2007 Series
INTERLOCK NON-LOCKING DPST
