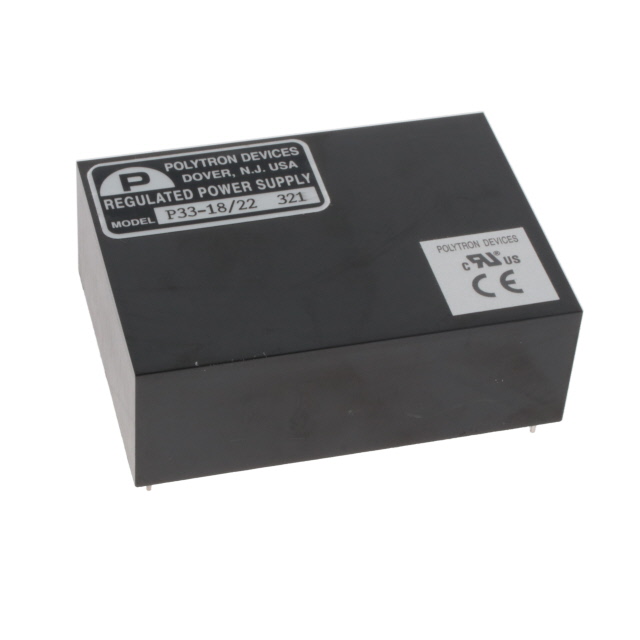

P33-18/22
ActiveDaburn Electronics
AC/DC CONVERTER +/-18V
Deep-Dive with AI
Search across all available documentation for this part.
P33-18/22
ActiveDaburn Electronics
AC/DC CONVERTER +/-18V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P33-18/22 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, UL |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Features | SCP |
| Line Regulation | 0.1 % |
| Load Regulation | 0.1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 5-DIP Module |
| Size / Dimension [x] | 3.5 in |
| Size / Dimension [x] | 88.9 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [z] | 1.25 " |
| Size / Dimension [z] | 31.8 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 125 VAC |
| Voltage - Input [Min] | 105 VAC |
| Voltage - Output 1 | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 218.75 | |
Description
General part information
P33-18 Series
Enclosed AC DC Converters 2 Output 18V 100mA, 100mA 105 ~ 125 VAC Input
