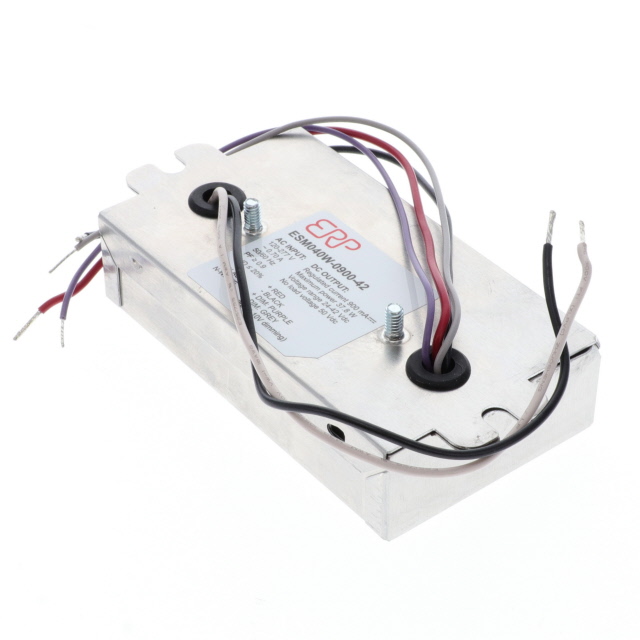

ESM040W-0900-42
ActiveERP Power, LLC
LED DRIVER CC AC/DC 28-42V 900MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESM040W-0900-42
ActiveERP Power, LLC
LED DRIVER CC AC/DC 28-42V 900MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESM040W-0900-42 |
|---|---|
| Approval Agency | CB, cUL, FC, UL, CE, cRUcs |
| Current - Output (Max) [Max] | 900 mA |
| Dimming | ELV, TRIAC |
| Efficiency | 87 % |
| Features | OTP, SCP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 38 W |
| Ratings | NEMA 410, IP20 |
| Size / Dimension [x] | 106.7 mm, 4.2 in |
| Size / Dimension [y] | 60.3 mm, 2.37 in |
| Size / Dimension [z] | 0.99 in, 25.2 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 42 V |
| Voltage - Output [Min] | 28 V |
| Weight | 252 g |
| Weight | 0.556 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.01 | |
| 5 | $ 30.32 | |||
| 10 | $ 28.64 | |||
| 25 | $ 27.38 | |||
| 50 | $ 26.11 | |||
| 100 | $ 25.27 | |||
| 250 | $ 23.16 | |||
Description
General part information
ESM040W Series
900mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
