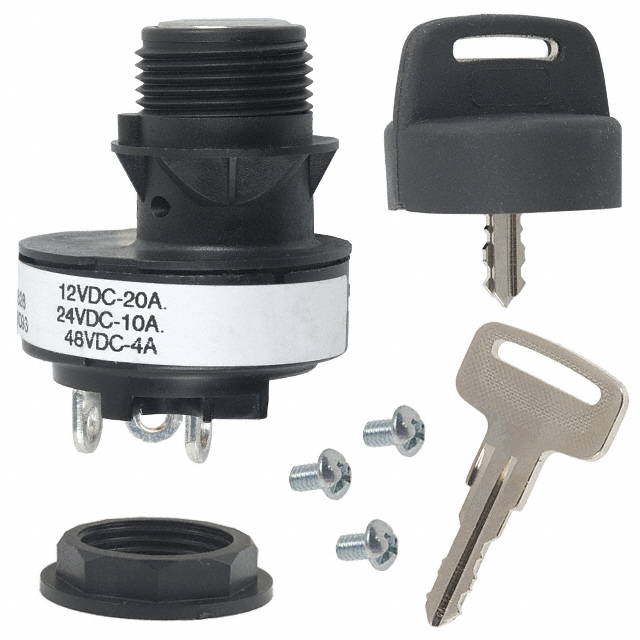

84828-08

Active

Honeywell Sensing and Productivity Solutions

SWITCH KEYLOCK 2POS SPST 20A 12V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH KEYLOCK 2POS SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	84828-08

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	SPST
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	20 A
Depth Behind Flange	39.88 mm
Electrical Life	25000 Steps
Key Removable Positions	Center
Mechanical Life	25000 Steps
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.35 mm
Switch Function	Off-On
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

Part	Mechanical Life	Electrical Life	Depth Behind Flange	Number of Positions	Contact Timing	Angle of Throw	Actuator Type	Switch Function	Panel Cutout Dimensions [diameter]	Termination Style	Circuit	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Key Removable Positions
Honeywell Sensing and Productivity Solutions 84828-08	25000 Steps	25000 Steps	39.88 mm	2	Not Specified	45 °	Flat Key	Off-On	22.35 mm	Screw Terminal	SPST	Copper	85 °C	-40 °C	12 V	20 A	Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPST 20A (DC) AC 12 VDC Panel Mount
