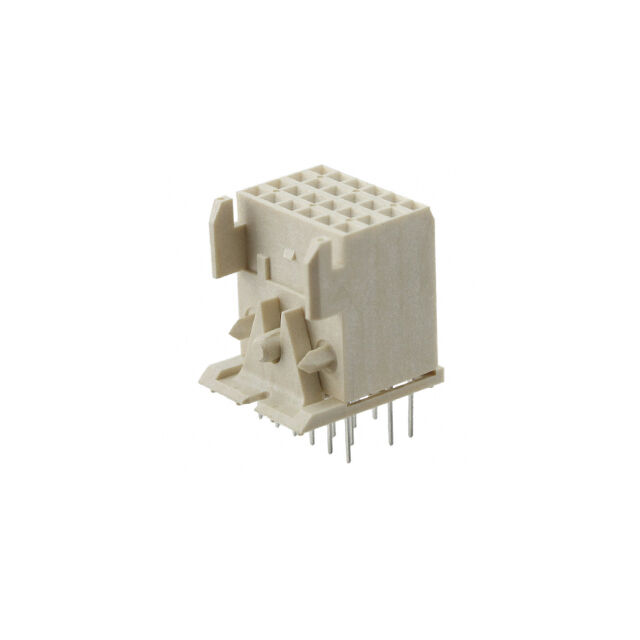

HM1S53TSR000H6LF

Active

Amphenol ICC (FCI)

METRAL T 5RX2M STR STB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

METRAL T 5RX2M STR STB

Technical Specifications

Parameters and characteristics for this part

Specification	HM1S53TSR000H6LF

Color	Natural
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.75 µm
Contact Finish Thickness	29.5 µin
Features	Spacer, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	24
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

Part	Contact Finish	Number of Rows	Features	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Mounting Type	Number of Positions	Number of Columns	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) HM1S53TSR000H6LF	Gold	5	Board Guide Spacer	UL94 V-0	0.75 µm	29.5 µin	All	Through Hole	120	24	Solder	-55 °C	125 °C	Receptacle Female Sockets	Natural	0.079 in	2 mm
