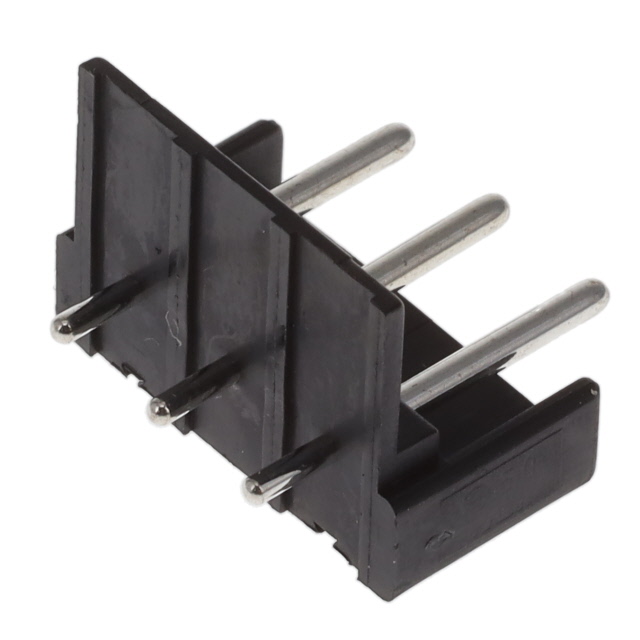

EX0300010000G

Active

Amphenol Anytek

EX 5.0 - 3P NL66 , BRASS BRIGHT

Search across all available documentation for this part.

Active

Amphenol Anytek

EX 5.0 - 3P NL66 , BRASS BRIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	EX0300010000G

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.132 in
Contact Tail Length	3.35 mm
Current - UL	10 A
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height	9.5 mm
Insulation Height	0.374 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination Style	Solder
Type	Male Pins, Partial Shroud, Header
Voltage - UL	300 V

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Color	Termination Style	Type	Current - UL	Insulation Height	Insulation Height	Voltage - UL	Pitch [x]	Pitch [x]	Contact Mating Finish	Header Orientation	Contact Tail Length	Contact Tail Length	Housing Material	Number of Levels	Mounting Type
Amphenol Anytek EX0300010000G	Brass	-40 °C	115 °C	UL94 V-0	Black	Solder	Header Male Pins Partial Shroud	10 A	9.5 mm	0.374 in	300 V	5 mm	0.197 in	Tin	Vertical	0.132 in	3.35 mm	Thermoplastic	1	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) Vertical Through Hole
