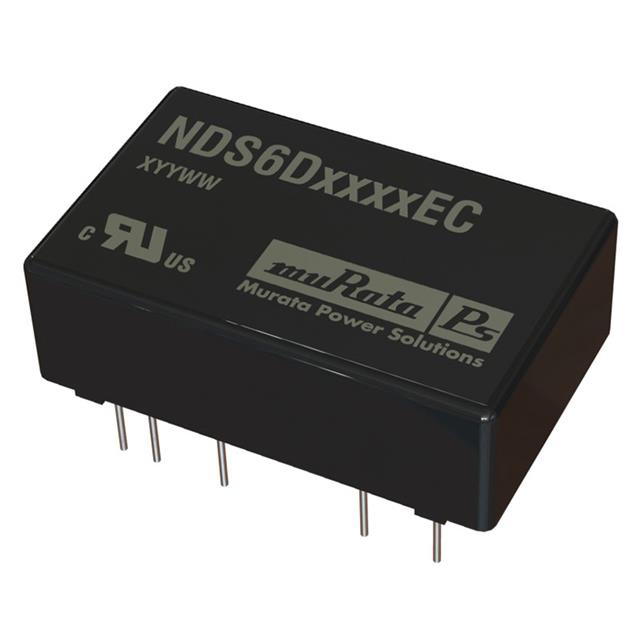

NDS6D2415EC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 6W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Type	Power (Watts)	Efficiency	Voltage - Output 2	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Package / Case
Murata Power Solutions Inc. NDS6D2405C	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	85 °C	-40 °C	600 mA	Isolated Module	6 W	83 %	-5 V	24-DIP Module 8 Leads	1.5 kV	18 V	Through Hole	2	ITE (Commercial)	36 V	12 V	5 V
Murata Power Solutions Inc. NDS6D2412C	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	85 °C	-40 °C		Isolated Module	6 W	87 %	-12 V	24-DIP Module 8 Leads	1.5 kV	18 V	Through Hole	2	ITE (Commercial)	36 V			12 V	250 mA	250 mA
Murata Power Solutions Inc. NDS6D2415C	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	85 °C	-40 °C		Isolated Module	6 W	87.5 %	-15 V	24-DIP Module 8 Leads	1.5 kV	18 V	Through Hole	2	ITE (Commercial)	36 V			15 V
Murata Power Solutions Inc. NDS6D2415EC	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	85 °C	-40 °C		Isolated Module	6 W	87.5 %	-15 V	24-DIP Module	1.5 kV	18 V	Through Hole	2	ITE (Commercial)	36 V			15 V			9 PC Pad
Murata Power Solutions Inc. NDS6D2405EC	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	85 °C	-40 °C	600 mA	Isolated Module	6 W	83 %	-5 V	24-DIP Module	1.5 kV	18 V	Through Hole	2	ITE (Commercial)	36 V	12 V	5 V				9 PC Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 20.30

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 18V - 36V Input

Technical documentation and resources
