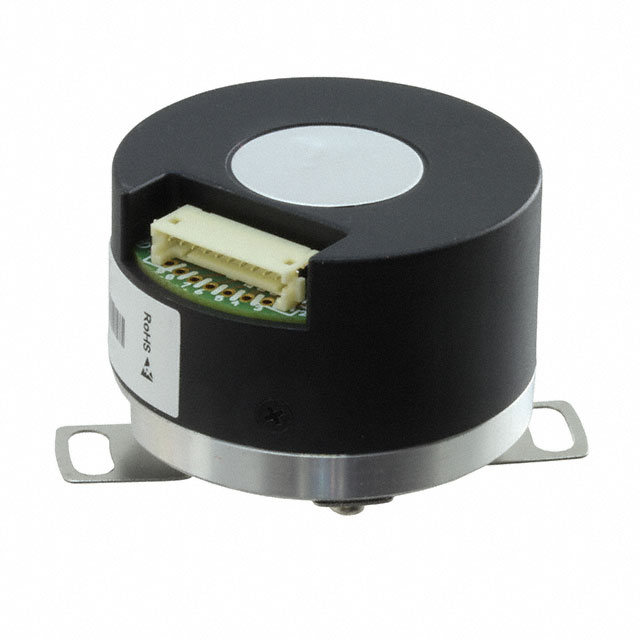

AS37-H39B-K12S

Obsolete

Broadcom Limited

ROTARY ENCODER OPTICAL

Search across all available documentation for this part.

Obsolete

Broadcom Limited

ROTARY ENCODER OPTICAL

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Encoder Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Orientation	Mounting Type
Broadcom Limited AS37-H39B-B21S	Hole for Shaft	Optical	4.5 V	5.5 V	Connector	Vertical	Chassis Mount
Broadcom Limited AS37-H39B-K22S	Hole for Shaft	Optical	4.5 V	5.5 V	Connector	Vertical	Chassis Mount
Broadcom Limited AS37-H39B-B13S	Hole for Shaft	Optical	4.5 V	5.5 V	Connector	Vertical	Chassis Mount
Broadcom Limited AS37-H39B-K12S	Hole for Shaft	Optical	4.5 V	5.5 V	Connector	Vertical	Chassis Mount
Broadcom Limited AS37-H39B-B06S	Hole for Shaft	Optical	4.5 V	5.5 V	Connector	Vertical	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ROTARY ENCODER OPTICAL

Technical documentation and resources
