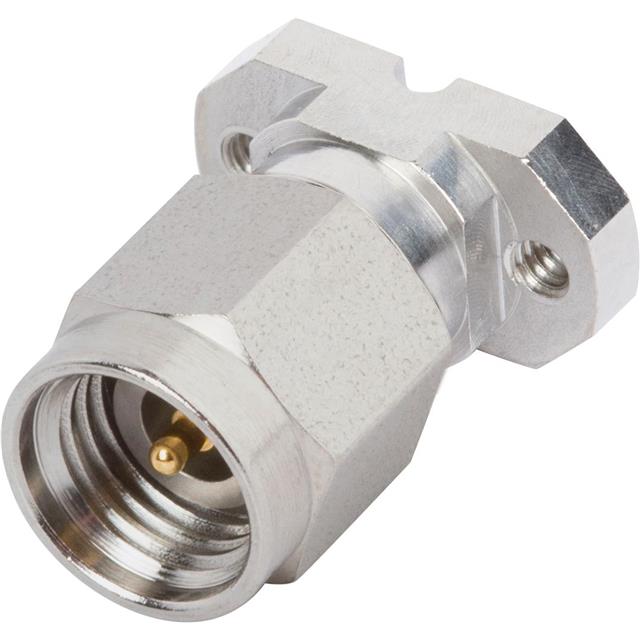

SF1511-60119

Active

Amphenol SV Microwave

2.92MM MALE SOLDERLESS PCB COMPR

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM MALE SOLDERLESS PCB COMPR

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Plating	Dielectric Material	Housing Color	Impedance	Cable Group	Cable Group	Connector Type	Center Contact Material	Frequency - Max [Max]	Connector Style	Body Material	Number of Ports	Mounting Type	Mating Cycles	Contact Termination	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Feature
Amphenol SV Microwave SF1511-60071	Gold	Polyetherimide (PEI)	Silver	50 Ohms	0.085 in	RG-405	Male Pin Plug	Beryllium Copper	40 GHz	2.92 mm	Stainless Steel	1	Free Hanging (In-Line)
Amphenol SV Microwave SF1511-60119-2S	Gold		Silver	50 Ohms			Male Pin Plug	Beryllium Copper	40 GHz	2.92 mm	Stainless Steel		Surface Mount	500	Compression	Screw	-65 ░C	165 °C	Mounting Hardware	Flange
Amphenol SV Microwave SF1511-60119	Gold		Silver	50 Ohms			Male Pin Plug	Beryllium Copper	40 GHz	2.92 mm	Stainless Steel		Surface Mount	500	Compression	Screw	-65 ░C	165 °C		Flange
Amphenol SV Microwave SF1511-60069	Gold	Polyetherimide (PEI)	Silver	50 Ohms	0.047 in	Flexible	Male Pin Plug	Beryllium Copper	40 GHz	2.92 mm	Stainless Steel	1	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Plug, Male Pin 50 Ohms Surface Mount Compression

Technical documentation and resources
