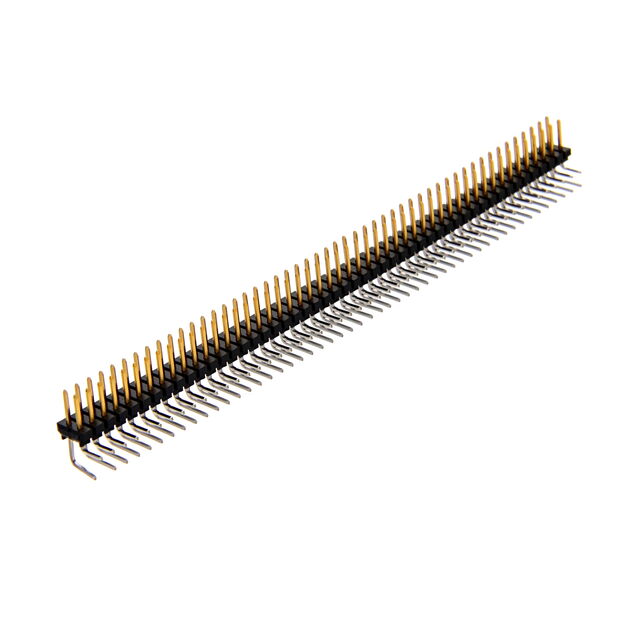

XG8B-0134

Active

Omron Electronics Inc-EMC Div

CONN HEADER R/A 100P 2.54MM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN HEADER R/A 100P 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	XG8B-0134

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass, Nickel
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.244 in
Insulation Height	6.2 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	100
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	300 VDC

Part	Termination	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Connector Type	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Positions	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post	Number of Rows	Shrouding	Insulation Color	Voltage Rating	Contact Finish - Post
Omron Electronics Inc-EMC Div XG8B-0134	Solder	6 mm	0.236 in	Through Hole Right Angle	0.15 µm	5.9 µin	Board to Board Cable	Header	Polybutylene Terephthalate (PBT) Glass Filled	0.244 in	6.2 mm	UL94 V-0	105 ░C	-55 °C	Gold	Square	Brass Nickel	2 çm	78.7 çin	Male Pin	Push-Pull	All	0.1 in	2.54 mm	100	3 A	2.54 mm	0.1 in	0.11 in	2.79 mm	2	Unshrouded	Black	300 VDC	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 100 position 0.100" (2.54mm)
