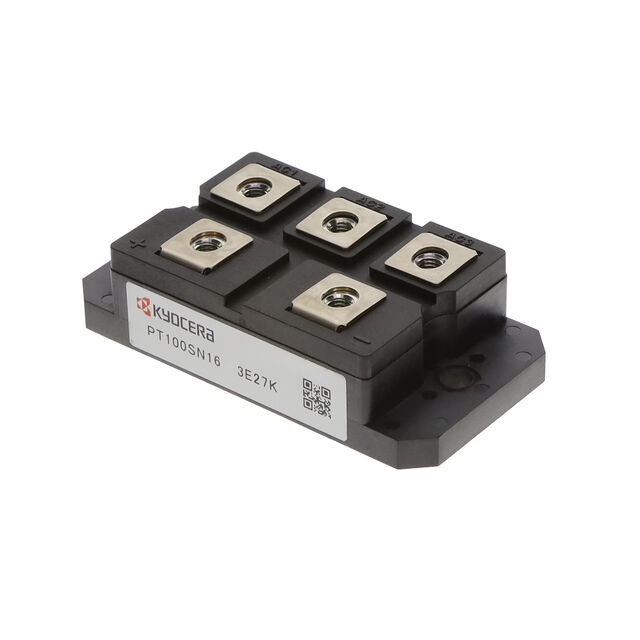

PT100SN16

Active

Kyocera AVX

DIODE MODULE 3PHASE 1.6KV 100A

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE MODULE 3PHASE 1.6KV 100A

Technical Specifications

Parameters and characteristics for this part

Specification	PT100SN16

Current - Average Rectified (Io)	100 A
Current - Reverse Leakage @ Vr	10 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.35 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Current - Average Rectified (Io)	Diode Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)
Kyocera AVX PT100KN8	Chassis Mount	150 °C	-40 °C	Standard	100 A	Three Phase	1.27 V	Module	800 V	Module
Kyocera AVX PT100SN16	Chassis Mount	150 °C	-40 °C	Standard	100 A	Three Phase	1.35 V	Module		Module	10 mA	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.00

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount Module
