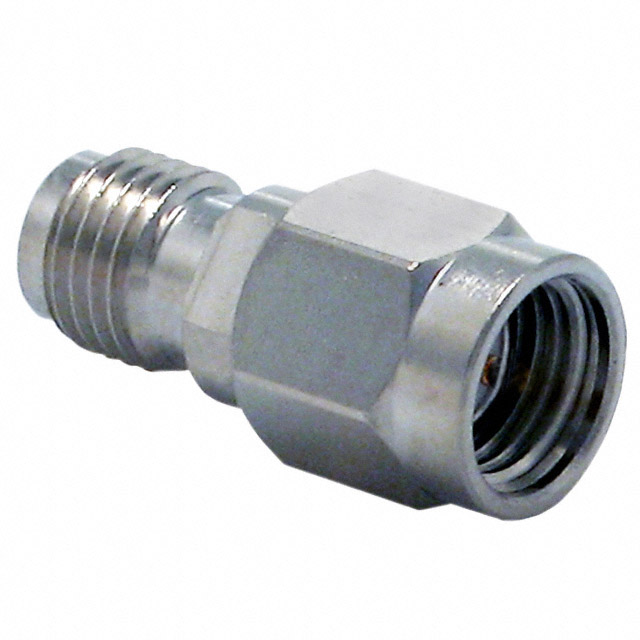

ADP-RPSM-SMAF

Active

TE Connectivity Linx

CONN ADAPT SMA JACK-RP-SMA PLUG

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN ADAPT SMA JACK-RP-SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ADP-RPSM-SMAF

Adapter Series	SMA to RP-SMA
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Female
Conversion Type	Between Series
Convert From (Adapter End)	RP-SMA Jack, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Type	Convert From (Adapter End)	Body Material	Center Gender	Convert To (Adapter End)	Body Finish	Impedance	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Center Contact Material	Mounting Type	Adapter Series	Center Contact Plating	Dielectric Material	Style	Frequency - Max [Max]
TE Connectivity Linx ADP-RPSM-SMAF-G	Plug to Jack	Female Socket RP-SMA Plug	Brass	Male to Female	Female Socket SMA Jack	Gold	50 Ohms	500	-65 ░C	165 °C	Between Series	Beryllium Copper	Free Hanging (In-Line)	SMA to RP-SMA	Gold	Polytetrafluoroethylene (PTFE)	Straight	18 GHz
TE Connectivity Linx ADP-RPSM-SMAF	Plug to Jack	RP-SMA Jack Male Pin	Brass	Male to Female	Female Socket SMA Jack	Nickel	50 Ohms	500	-65 ░C	165 °C	Between Series	Brass	Free Hanging (In-Line)	SMA to RP-SMA	Gold	Polytetrafluoroethylene (PTFE)	Straight	12.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.16

General part information

Adapter Coaxial Connector RP-SMA Jack, Male Pin To SMA Jack, Female Socket 50 Ohms
