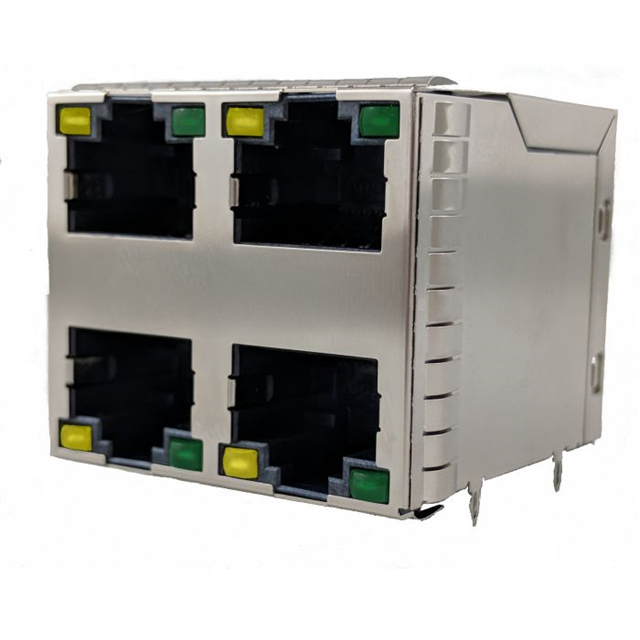

RJE4W48874A1

Active

Amphenol ICC (Commercial Products)

8P8C, RA, CAT5E, STACKED 2X2, WI

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

8P8C, RA, CAT5E, STACKED 2X2, WI

Technical Specifications

Parameters and characteristics for this part

Specification	RJE4W48874A1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	4
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Up and Down
Termination	Solder

Part	Ratings	LED Color	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Termination	Mounting Type	Contact Finish	Housing Material	Contact Material	Number of Rows	Orientation	Number of Ports	Connector Type
Amphenol ICC (Commercial Products) RJE4W48874A1	Cat5e	Green Yellow	Shielded EMI Finger	85 °C	-55 °C	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Up and Down	Solder	Through Hole	Gold	Thermoplastic	Phosphor Bronze	2	90 °	4	Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
