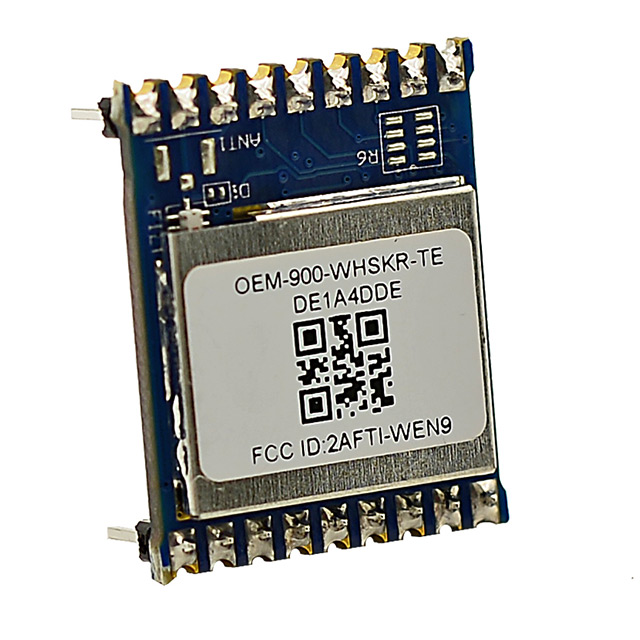

OEM-900-WHSKR-TE
ActiveDigital Six Labs
RF TXRX MOD 802.15.4 TRC ANT TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OEM-900-WHSKR-TE |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 13 mA |
| Current - Transmitting | 125 mA |
| Frequency | 900 MHz |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Power - Output | 13 dBm |
| Protocol | LoRa™ |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -120 dBm |
| Serial Interfaces | UART, I2C |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
OEM-900 Series
| Part | Sensitivity | RF Family/Standard | Current - Receiving | Antenna Type | Protocol | Serial Interfaces | Current - Transmitting | Power - Output | Package / Case | Frequency | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Digital Six Labs | -120 dBm | 802.15.4 | 13 mA | Integrated Trace | LoRa™ | I2C UART | 125 mA | 13 dBm | Module | 900 MHz | Through Hole | 3.6 V | 1.8 V |
Digital Six Labs | -120 dBm | 802.15.4 | 13 mA | Integrated Trace | LoRa™ | I2C UART | 125 mA | 13 dBm | Module | 900 MHz | Through Hole | 3.6 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.30 | |
Description
General part information
OEM-900 Series
802.15.4 LoRa™ Transceiver Module 900MHz Integrated, Trace Through Hole
