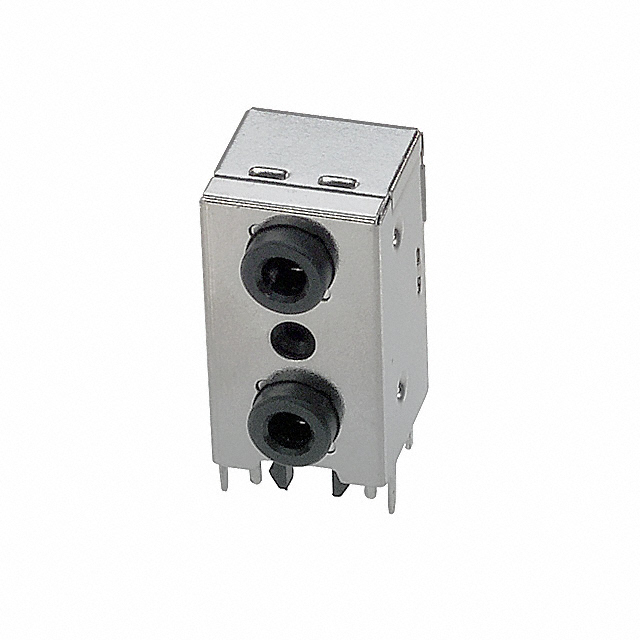

SJD-3512-45

Obsolete

CUI Devices

CONN JACK DUAL STEREO 3.5MM R/A

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN JACK DUAL STEREO 3.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SJD-3512-45

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Black
Connector Type	Phone Jack, Dual
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Gender	Female
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	Single Switch, Two Switches
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	2 Sets of 3 Conductors, 9 Contacts
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Signal Lines	Stereo
Termination	Solder

Part	Current Rating (Amps)	Mounting Type	Contact Material	Voltage - Rated	Termination	Contact Material - Plating	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Signal Lines	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Color	Gender	Internal Switch(s)	Number of Positions/Contacts
CUI Devices SJD-3512-33	300 mA	Through Hole Right Angle	Copper Alloy	16 V	Solder	Tin	0.141 "	0.125 "	3.5 mm	Shielded	-25 °C	85 °C	Stereo	Dual Phone Jack	0.142 in	3.6 mm	Black	Female
CUI Devices SJD-3512-45		Through Hole Right Angle	Copper Alloy		Solder	Tin	0.141 "	0.125 "	3.5 mm	Shielded	-25 °C	85 °C	Stereo	Dual Phone Jack	0.142 in	3.6 mm	Black	Female	Single Switch Two Switches	2 Sets of 3 Conductors 9 Contacts
CUI Devices SJD-3511-33	300 mA	Through Hole Right Angle	Brass	16 V	Solder	Tin	0.141 "	0.125 "	3.5 mm	Shielded			Stereo	Dual Phone Jack	0.142 in	3.6 mm	Black	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder
