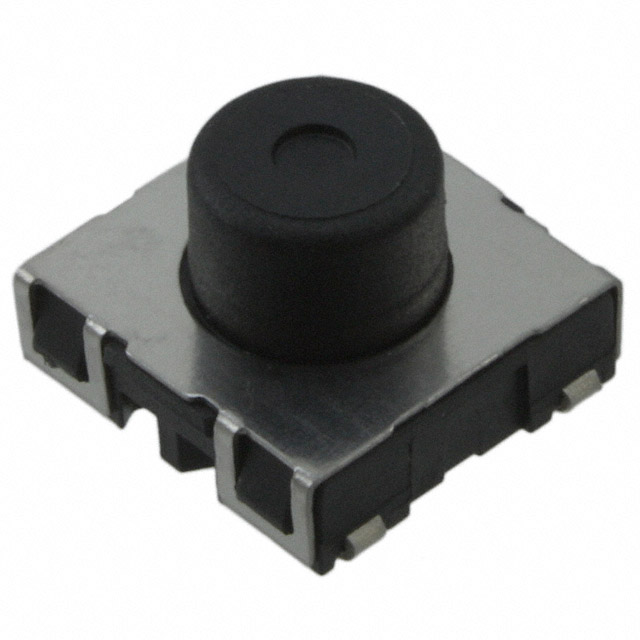

1241.1619.11
ActiveSCHURTER Inc.
SWITCH TACTILE SPST-NO 0.05A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.1619.11
ActiveSCHURTER Inc.
SWITCH TACTILE SPST-NO 0.05A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241.1619.11 |
|---|---|
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 42 VDC, 0.05 A |
| Features | Tactile Feedback |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 220 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 11.4 mm |
| Outline [y] | 11.4 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.35 mm |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.39 | |
| 50 | $ 2.52 | |||
| 100 | $ 2.09 | |||
Description
General part information
1241.1619 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
