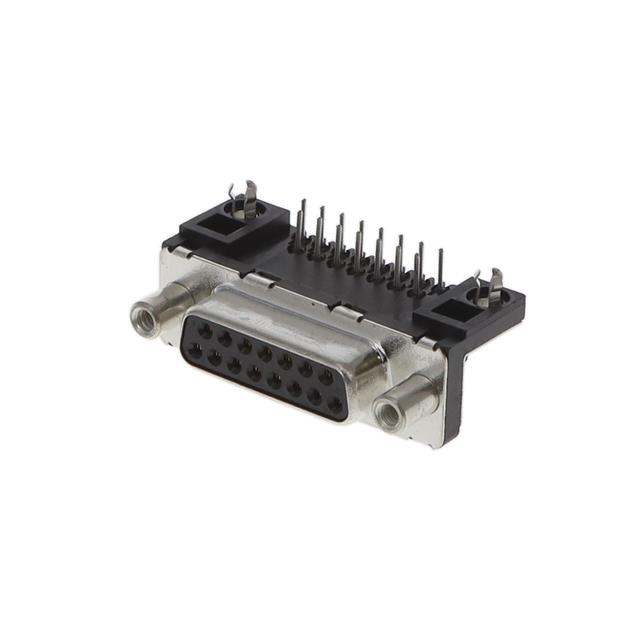

LD15S13A4GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 15POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD15S13A4GV00LF

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

Part	Dielectric Material	Contact Type	Connector Type	Mounting Type	Contact Finish	Termination	Number of Positions	Flange Feature	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Style	Contact Finish Thickness	Voltage Rating	Material Flammability Rating	Color	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Shell Material, Finish	Contact Material
Amphenol ICC (FCI) LD15S13A4GX00LF	Thermoplastic	Signal	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Gold	Solder	15	Housing/Shell (4-40)	2	105 ░C	-55 °C	5 A	D-Sub	Flash	250 VDC	UL94 V-0	Black	2	0.409 in	10.4 mm	Steel Tin-Nickel Plated	Copper Alloy
Amphenol ICC (FCI) LD15S13A4GV00LF	Thermoplastic	Signal	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Gold	Solder	15	Female Screwlock (4-40) Mating Side	2	105 ░C	-55 °C	5 A	D-Sub	Flash	250 VDC	UL94 V-0	Black	2	0.409 in	10.4 mm	Steel Tin-Nickel Plated	Copper Alloy
