C0763A.41.10

Active

Prysmian Group

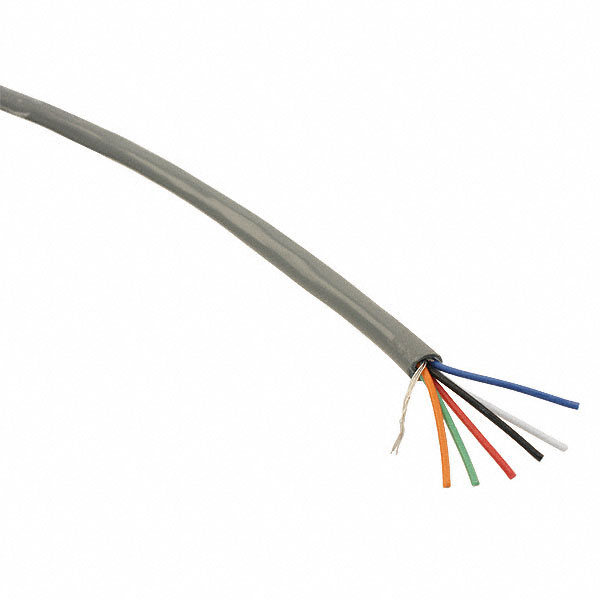

CABLE 6COND 22AWG GRAY SHLD 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 22AWG GRAY SHLD 50'

Technical Specifications

Parameters and characteristics for this part

Specification	C0763A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length [x]	Shield Material	Wire Gauge	Features	Number of Conductors	Length	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Shield Type	Cable Type	Jacket Color	Conductor Material	Conductor Insulation	Ratings	Voltage
Prysmian Group C0763A.41.10	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Computer	0.219 in	5.56 mm	15.24 m 304.8 m	50 ft	Flexfoil®	22 AWG	Drain Wire	6	1000 ft	7	30 AWG	100 %	Foil	Multi-Conductor	Gray	Copper Annealed Tinned	Poly-Vinyl Chloride (PVC)	ASTM B-33	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Gray 22 AWG Foil 1000.0' (304.8m)
