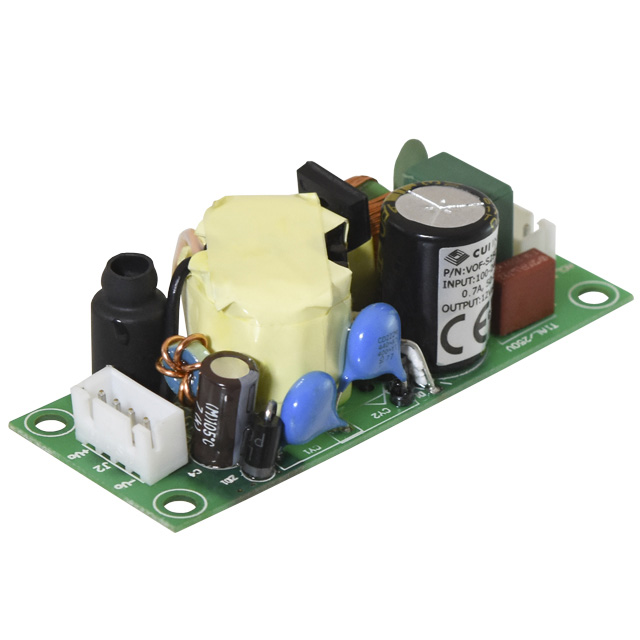

VOF-S25C-15

Active

CUI Inc.

AC/DC CONVERTER 15V 25W

Deep-Dive with AI

Search across all available documentation for this part.

VOF-S25C-15

Active

CUI Inc.

AC/DC CONVERTER 15V 25W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-S25C-15

Applications	Household Appliances, ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	1.67 A
Efficiency	85 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	25 W
Size / Dimension [x]	70.5 mm
Size / Dimension [x]	2.78 in
Size / Dimension [y]	27.9 mm
Size / Dimension [y]	1.1 in
Size / Dimension [z]	19.5 mm
Size / Dimension [z]	0.77 "
Standard Number	55032 Class A, 61204-3, 61000-6-1, 61000-3-2, 60950-1, 61000-6-2, 62368-1, 61000-3-3, 55024
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

VOF-S25 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Package / Case	Type	Approval Agency	Features	Power (Watts)	Load Regulation	Standard Number	Voltage - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Line Regulation	Voltage - Isolation	Current - Output 1
CUI Inc. VOF-S25B-5-PB	1.1 in	2 in	24.9 mm	50.8 mm	27.9 mm	0.98 in	Through Hole	6-DIP Module	Open Frame	CB Scheme EN IEC SIQ TUV UL	Universal Input	20 W	1 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	5 V	Household Appliances ITE (Commercial)	70 °C	-30 °C	4 A	81 %	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %
CUI Inc. VOF-S25B-24-PB	1.1 in	2 in	24.9 mm	50.8 mm	27.9 mm	0.98 in	Through Hole	6-DIP Module	Open Frame	CB Scheme EN IEC SIQ TUV UL	Universal Input	25 W	1 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	24 V	Household Appliances ITE (Commercial)	70 °C	-30 °C	1.05 A	86 %	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %
CUI Inc. VOF-S25B-36-PB	1.1 in	2 in	24.9 mm	50.8 mm	27.9 mm	0.98 in	Through Hole	6-DIP Module	Open Frame	CB Scheme EN IEC SIQ TUV UL	Universal Input	25 W	1 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	36 V	Household Appliances ITE (Commercial)	70 °C	-30 °C	700 mA	87 %	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %
CUI Inc. VOF-S25C-15	1.1 in	2.78 in	19.5 mm	70.5 mm	27.9 mm	0.77 "	Chassis Mount		Open Frame	CB Scheme EN IEC SIQ TUV UL	Universal Input	25 W		55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	15 V	Household Appliances ITE (Commercial)	70 °C	-30 °C		85 %	264 VAC 370 VDC	90 VAC 120 VDC	1		3000 V	1.67 A
CUI Inc. VOF-S25B-36	1.1 in	2 in	24.9 mm	50.8 mm	27.9 mm	0.98 in	Through Hole	4-DIP Module	Open Frame	CB Scheme EN IEC SIQ TUV UL	Universal Input	25 W	1 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	36 V	Household Appliances ITE (Commercial)	70 °C	-30 °C	700 mA	87 %	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %
CUI Inc. VOF-S25B-48	1.1 in	2 in	24.9 mm	50.8 mm	27.9 mm	0.98 in	Through Hole	4-DIP Module	Open Frame	CB Scheme EN IEC SIQ TUV UL	Universal Input	25 W	1 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	48 V	Household Appliances ITE (Commercial)	70 °C	-30 °C	520 mA	87 %	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	52	$ 26.13

Description

General part information

VOF-S25 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC, 120 ~ 370 VDC Input

Documents

Technical documentation and resources

No documents available
