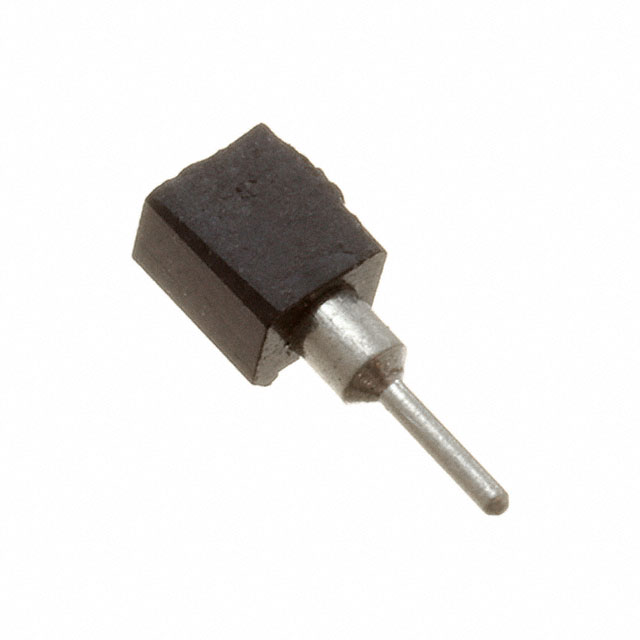

SMC-1-01-1-GT

Active

Adam Tech

MACHINE PIN SOCKET 1P 2.54MM PIT

Search across all available documentation for this part.

Active

Adam Tech

MACHINE PIN SOCKET 1P 2.54MM PIT

Technical Specifications

Parameters and characteristics for this part

Specification	SMC-1-01-1-GT

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	100 V, 150 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Color	Connector Type	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Number of Rows	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Shape	Material Flammability Rating	Insulation Material	Fastening Type	Contact Finish - Mating	Voltage Rating	Termination	Contact Type
Adam Tech SMC-1-09-1-GT	105 ░C	-55 °C	Through Hole	Black	Socket	Flash	Copper Alloy	9	All	Tin	1	3 A	0.1 in	2.54 mm	Circular	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	100 V 150 VDC	Solder	Female Socket
Adam Tech SMC-1-06-1-GT	105 ░C	-55 °C	Through Hole	Black	Socket	Flash	Copper Alloy	6	All	Tin	1	3 A	0.1 in	2.54 mm	Circular	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	100 V 150 VDC	Solder	Female Socket
Adam Tech SMC-1-07-1-GT	105 ░C	-55 °C	Through Hole	Black	Socket	Flash	Copper Alloy	7	All	Tin	1	3 A	0.1 in	2.54 mm	Circular	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	100 V 150 VDC	Solder	Female Socket
Adam Tech SMC-1-11-1-GT	105 ░C	-55 °C	Through Hole	Black	Socket	Flash	Copper Alloy	11	All	Tin	1	3 A	0.1 in	2.54 mm	Circular	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	100 V 150 VDC	Solder	Female Socket
Adam Tech SMC-1-01-1-GT	105 ░C	-55 °C	Through Hole	Black	Socket	Flash	Copper Alloy	1	All	Tin	1	3 A	0.1 in	2.54 mm	Circular	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	100 V 150 VDC	Solder	Female Socket
