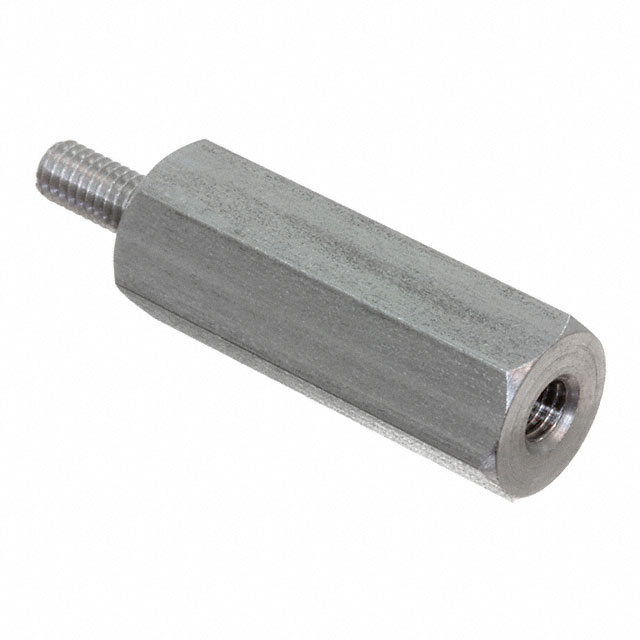

M2245-4007-SS
ActiveRAF Electronic Hardware
10MM X 40MM X M4 THD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2245-4007-SS
ActiveRAF Electronic Hardware
10MM X 40MM X M4 THD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2245-4007-SS |
|---|---|
| Between Board Height | 1.575 in |
| Between Board Height | 40 mm |
| Diameter - Outside [diameter] | 10 mm |
| Diameter - Outside [diameter] | 0.394 in |
| Gender | Male, Female |
| Length - Overall [x] | 1.95 in |
| Length - Overall [x] | 49.53 mm |
| Material | Stainless Steel |
| Screw, Thread Size | M4x0.7 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.05 | |
| 5 | $ 6.90 | |||
| 10 | $ 6.49 | |||
| 25 | $ 6.02 | |||
| 50 | $ 5.71 | |||
| 100 | $ 5.43 | |||
Description
General part information
M2245 Series
Hex Standoff Threaded M4x0.7 Stainless Steel 1.575" (40.00mm)
Documents
Technical documentation and resources
