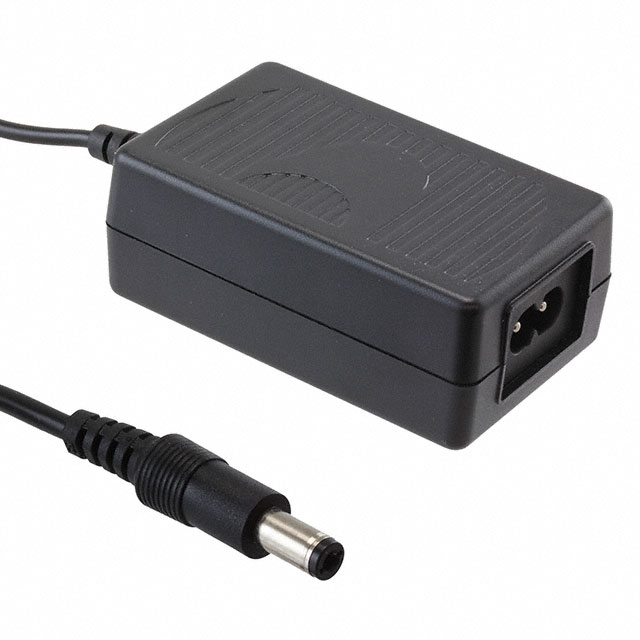

TR9KE1500LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 18W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9KE1500LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 18W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KE1500LCP-N(R6B)

Applications	ITE (Commercial)
Approval Agency	UKRSepro, CE, CB, VCCI, S-Mark, PSE, cULus, LPS, EAC
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	50 mm
Size / Dimension [x]	1.97 "
Size / Dimension [y]	81 mm
Size / Dimension [y]	3.19 in
Size / Dimension [z]	31 mm
Size / Dimension [z]	1.22 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TR9KE1500 Series

Part	Input Connector	Efficiency	Form	Current - Output (Max) [Max]	Region Utilized	No Load Power Consumption [Max]	Approval Agency	Voltage - Output	Cord Length	Cord Length	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Polarization	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Type	Power (Watts)	Output Connector [z]	Cord Length
GlobTek, Inc. TR9KE1500LCP-IMR6B	IEC 320-C8	Level VI	Desktop (Class II)	1.5 A	International	75 mW	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL VCCI	12 V	1.2 m	47.2 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	1.85 "	32 mm	3.43 in	47 mm	87 mm	1.26 in	90 VAC	264 VAC	-20 C	40 °C	Household Appliances ITE (Commercial) Medical	Positive Center	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	18 W
GlobTek, Inc. TR9KE1500CCP-IMR6B	IEC 320-C8	Level VI	Desktop (Class II)	1.5 A	International	75 mW	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL VCCI	12 V	1.2 m	47.2 in	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	1.85 "	32 mm	3.43 in	47 mm	87 mm	1.26 in	90 VAC	264 VAC	-20 C	40 °C	Household Appliances ITE (Commercial) Medical	Positive Center	Barrel Plug	2.1 mm 5.5 mm		Cord	18 W	11 mm
GlobTek, Inc. TR9KE1500MLX-N(R6B)	IEC 320-C8	CoC Tier 2 Level VI	Desktop (Class II)	1.5 A	International		CB CE cULus EAC LPS PSE S-Mark UKRSepro VCCI	12 V	1.2 m	47.2 in	60950-1	1.97 "	31 mm	3.17 in	50 mm	80.5 mm	1.22 in	90 VAC	264 VAC	0 °C	40 °C	ITE (Commercial)		Rectangular 3 Position			Cord	18 W
GlobTek, Inc. TR9KE1500CCP-N(R6B)	IEC 320-C8	Level VI	Desktop (Class II)	1.5 A	International		CB CE cULus EAC LPS PSE S-Mark UKRSepro VCCI	12 V		1.83 m	60950-1	3.19 in	31 mm	1.97 "	81 mm	50 mm	1.22 in	90 VAC	264 VAC	0 °C	40 °C	ITE (Commercial)	Positive Center	Barrel Plug	2.1 mm 5.5 mm		Cord	18 W	11 mm	72 in
GlobTek, Inc. TR9KE1500LCP-N(R6B)	IEC 320-C8	Level VI	Desktop (Class II)	1.5 A	International		CB CE cULus EAC LPS PSE S-Mark UKRSepro VCCI	12 V		1.83 m	60950-1	3.19 in	31 mm	1.97 "	81 mm	50 mm	1.22 in	90 VAC	264 VAC	0 °C	40 °C	ITE (Commercial)	Positive Center	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	18 W		72 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.39
		5	$ 13.23
		10	$ 12.76
		25	$ 12.17
		72	$ 11.52
		144	$ 11.11
		288	$ 10.71
		504	$ 10.41

Description

General part information

TR9KE1500 Series

12V 18 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
