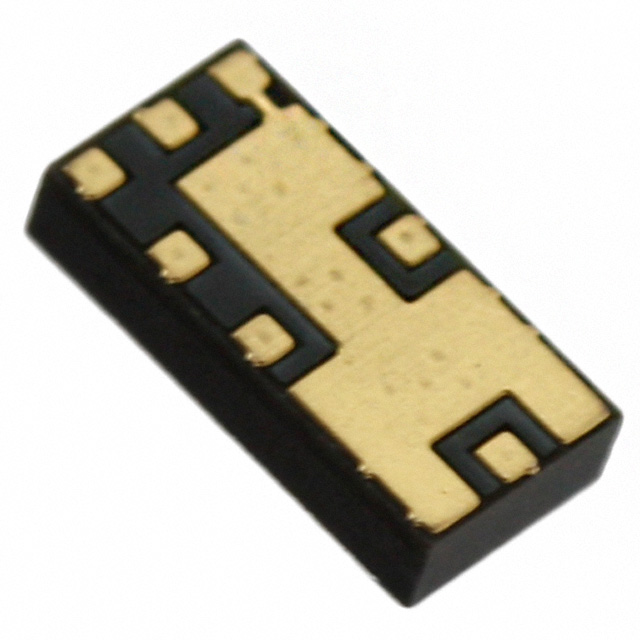

ALM-1412-TR1G
ObsoleteBroadcom Limited
IC RF AMP GPS 1.575GHZ 12MCOB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ALM-1412-TR1G
ObsoleteBroadcom Limited
IC RF AMP GPS 1.575GHZ 12MCOB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ALM-1412-TR1G |
|---|---|
| Current - Supply | 9.8 mA |
| Frequency | 1.575 GHz |
| Gain | 12.2 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 0.82 dB |
| P1dB | 4.5 dBm |
| Package / Case | 12-SMD Module, No Lead |
| RF Type | GPS |
| Supplier Device Package | 12-MCOB |
| Supplier Device Package [x] | 3.3 |
| Supplier Device Package [y] | 2.1 |
| Test Frequency | 1.575 GHz |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ALM-1412 Series
RF Amplifier IC GPS 1.575GHz 12-MCOB (3.3x2.1)
Documents
Technical documentation and resources
