EFR32FG23B010F512IM40-BR
UnknownSilicon Labs
IC RF TXRX+MCU ISM<1GHZ 40QFN
Deep-Dive with AI
Search across all available documentation for this part.
EFR32FG23B010F512IM40-BR
UnknownSilicon Labs
IC RF TXRX+MCU ISM<1GHZ 40QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFR32FG23B010F512IM40-BR |
|---|---|
| Current - Receiving [Max] | 9.5 mA |
| Current - Receiving [Min] | 3.7 mA |
| Current - Transmitting [Max] | 90.6 mA |
| Current - Transmitting [Min] | 8.2 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency [Max] | 372 MHz, 970 MHz, 557 MHz, 223 MHz, 727 MHz |
| Frequency [Min] | 742 MHz, 372 MHz, 110 MHz, 223 MHz, 557 MHz |
| GPIO | 23 |
| Modulation | 4FSK, DSSS, GMSK, OOK, 2FSK, GFSK, OQPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

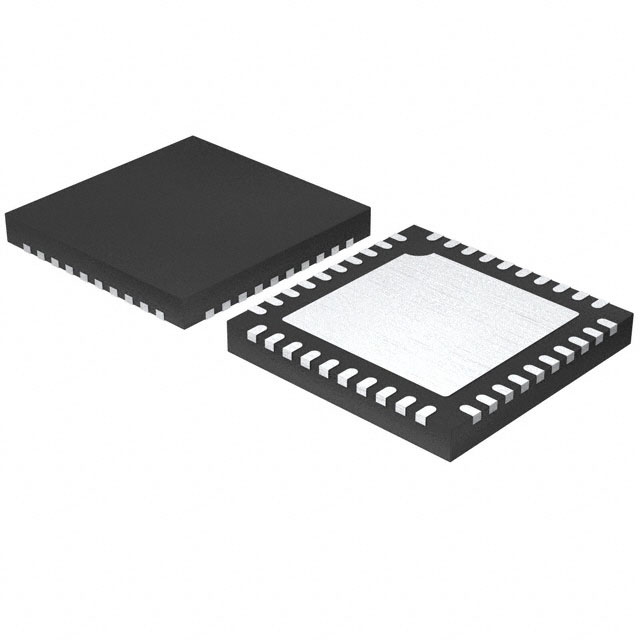

| Package / Case | 40-VFQFN Exposed Pad |
| Power - Output | 14 dBm |
| Protocol | Flex Gecko |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -125.8 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Supplier Device Package | 40-QFN (5x5) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 3.48 | |
Description
General part information
EFR32FG23B010 Series
IC RF TxRx + MCU General ISM < 1GHz Flex Gecko 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz 40-VFQFN Exposed Pad
