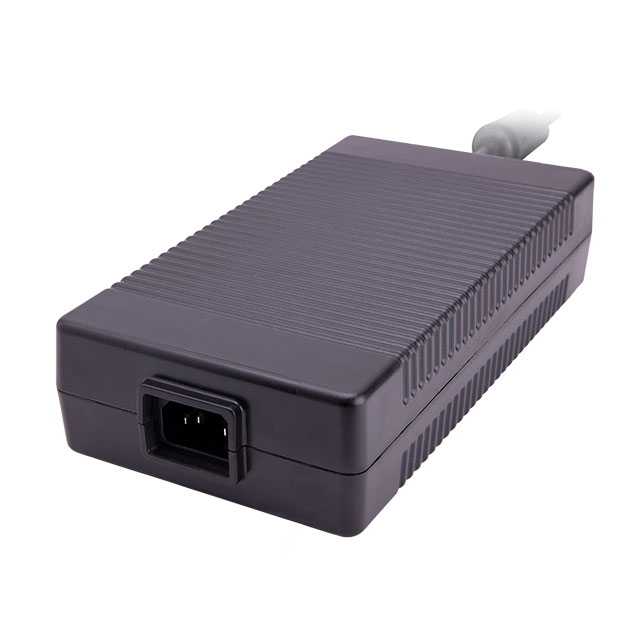

TE240A1251F01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 200W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 200W

Technical Specifications

Parameters and characteristics for this part

Part	Cord Length	Cord Length	Region Utilized	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Efficiency	Form	Input Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Output Connector	Size / Dimension	Size / Dimension	Weight	Weight
SL POWER / Advanced Energy TE240A1251N01	1 m	39.4 "	International	16.6 A	199 W	12 V	IEC 320-C8	90 VAC	264 VAC	ITE (Commercial)	Level VI	Desktop (Class II)	Cord	CE	-20 C	70 °C	210 mW	8.3 "	43.2 mm	67.3 mm	2.65 in	1.7 in	210.8 mm
SL POWER / Advanced Energy TE240A1251Q01	1 m	39.4 "	International	16.6 A	199 W	12 V	IEC 320-C18	90 VAC	264 VAC	ITE (Commercial)	Level VI	Desktop (Class I)	Cord	CE	-20 C	70 °C	210 mW	8.3 "	43.2 mm	67.3 mm	2.65 in	1.7 in	210.8 mm
SL POWER / Advanced Energy TE240A1251F01	1 m	39.4 "	International	16.6 A	200 W	12 V	IEC 320-C14	90 VAC	264 VAC	ITE (Commercial)	Level VI	Desktop (Class I)	Cord	CE	-20 C	70 °C	210 mW							Rectangular 6 Position	1.85 in 4.25 in 8.43 in	47 mm 108 mm 214 mm	1.5 lb	680.4 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 200 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
