SS-74500-028

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-74500-028

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Features	Board Guide
Housing Material	Thermoplastic
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	12
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	2
Orientation	90 °
Shielding	Shielded
Tab Direction	Up and Down
Termination	Solder

Part	Features	Connector Type	Contact Material	Shielding	Contact Finish	Number of Positions/Contacts	Number of Rows	Number of Ports	Orientation	Contact Finish Thickness	Contact Finish Thickness	Ratings	Mounting Type	Housing Material	Termination	LED Color	Tab Direction
BEL MAGNETIC SOLUTIONS SS-74500-020	Board Guide	Jack	Copper Alloy	Shielded	Gold	8p8c (RJ45 Ethernet)	2	4	90 °	50 µin	1.27 µm	Cat5e	Through Hole	Thermoplastic	Solder	Green Yellow	Up and Down
BEL MAGNETIC SOLUTIONS SS-74500-028	Board Guide	Jack	Copper Alloy	Shielded	Gold	8p8c (RJ45 Ethernet)	2	12	90 °	50 µin	1.27 µm		Through Hole	Thermoplastic	Solder	Yellow - Green	Up and Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

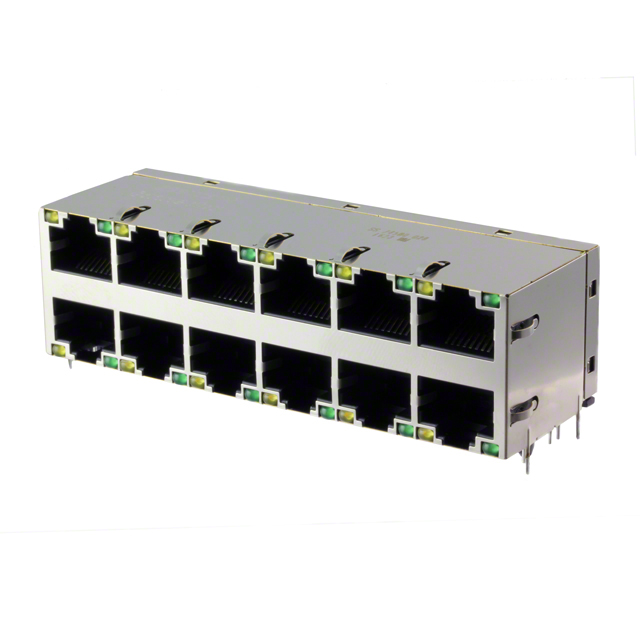

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
