1424541

Active

Phoenix Contact

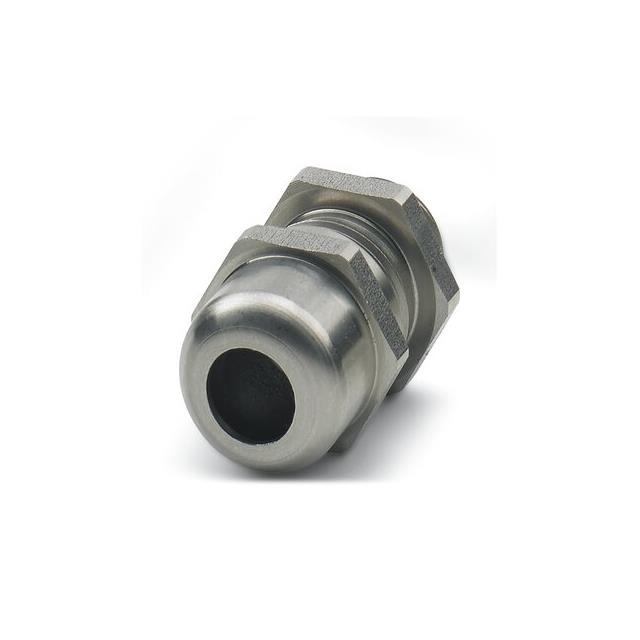

CABLE GLAND 3-6.5MM M12 S STEEL

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-6.5MM M12 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	1424541

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	M12x1.5
Type	Cable Gland

Part	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Includes	Color	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Ingress Protection
Phoenix Contact 1411160	0.236 in	6 mm	3 mm	0.118 in	Cable Gland	O-Ring Seal	Silver	Brass Nickel Plated	0.256 "	6.5 mm	100 °C	-40 °C	M12	IP66 IP68 IP69
Phoenix Contact 1424541	0.236 in	6 mm	3 mm	0.118 in	Cable Gland	O-Ring Seal	Silver	Stainless Steel	0.256 "	6.5 mm	100 °C	-40 °C	M12x1.5	IP66 IP68 IP69

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.34

General part information

Cable Gland Stainless Steel M12x1.5 Silver
