0010883121

Active

Molex

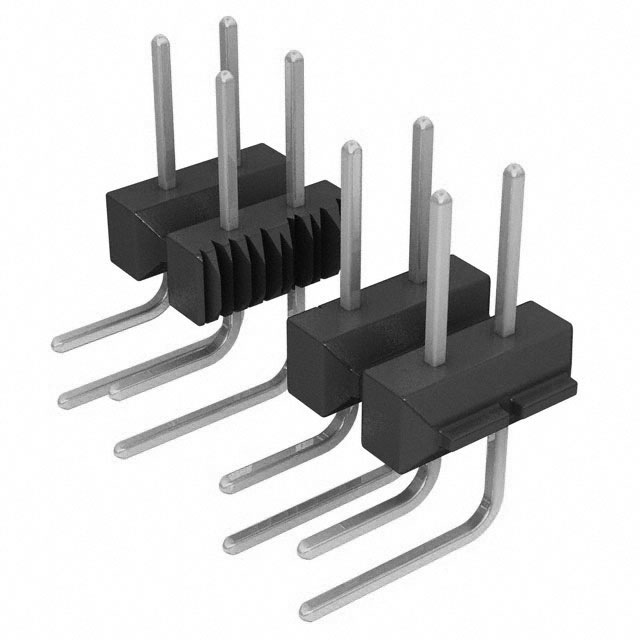

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0010883121

Active

Molex

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010883121

Applications	General Purpose, Medical, Lighting, Automotive, Telecommunications
Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

001088 Series

Part	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Mounting Type	Applications	Insulation Color	Contact Type	Contact Shape	Shrouding	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Connector Type	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Number of Rows	Contact Material	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Insulation Material	Contact Finish - Post	Contact Length - Post [x]
Molex 10-88-1561	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	56	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin
Molex 0010883121	UL94 V-0		2.79 mm	Through Hole Right Angle	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	12	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Copper Alloy			0.22 in	5.6 mm	Polyester Glass Filled	Tin	0.11 in
Molex 10-88-1505	UL94 V-0		2.79 mm	Through Hole Right Angle	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	50	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze					Polyester Glass Filled	Tin	0.11 in
Molex 10-88-1181	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	18	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin
Molex 10-88-1101	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	10	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin
Molex 10-88-1321	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder		Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin
Molex 10-88-1781	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	78	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin
Molex 10-88-1481	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	48	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin
Molex 10-88-1401	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	40	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin
Molex 10-88-1721	UL94 V-0	0.107 "	2.71 mm	Through Hole	Automotive General Purpose Lighting Medical Telecommunications	Black	Male Pin	Square	Unshrouded	6.1 mm	0.24 in	150 Áin	3.81 Ám	Solder	72	Breakaway Header	Push-Pull	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Board to Board Cable	2	Phosphor Bronze	11.1 mm	0.437 in	0.09 in	2.29 mm	Polyester Glass Filled	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.93
		10	$ 2.58
		100	$ 2.05
		1000	$ 1.70
		5000	$ 1.52

Description

General part information

001088 Series

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
