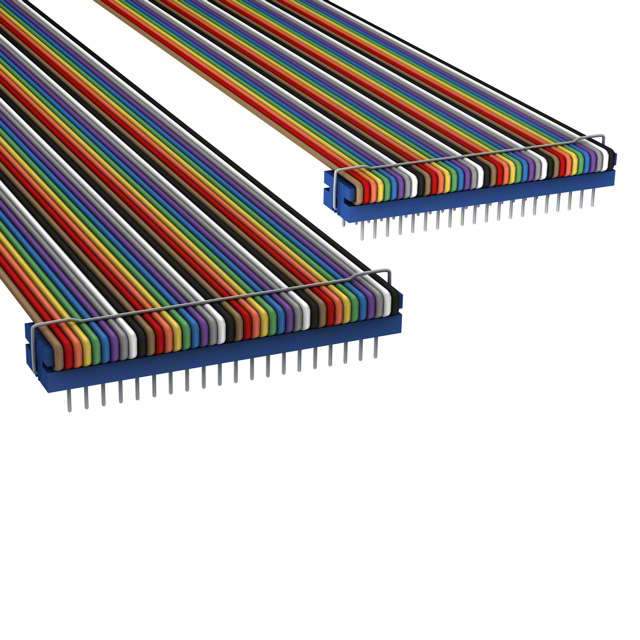

C0RRS-4018M

Active

CW Industries

DIP CABLE - CDR40S/AE40M/CDR40S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR40S/AE40M/CDR40S

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Length [x]	Length [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Shielding	Cable Termination	Connector Type	Usage	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length	Length	Length	Color
CW Industries C0RRS-4018G	2	457.2 mm	1.5 ft	Tin	2.54 µm	100 µin	40	Strain Relief	Unshielded	IDC	DIP to DIP Reversed	Board In Socket (0.6")	0.05 "	1.27 mm	0.1 in	2.54 mm
CW Industries C0RRS-4036G	2	914.4 mm	3 ft	Tin	2.54 µm	100 µin	40	Strain Relief	Unshielded	IDC	DIP to DIP Reversed	Board In Socket (0.6")	0.05 "	1.27 mm	0.1 in	2.54 mm
CW Industries C0RRS-4006M	2			Tin	2.54 µm	100 µin	40	Strain Relief	Unshielded	IDC	DIP to DIP Reversed	Board In Socket (0.6")	0.05 "	1.27 mm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	Multiple Ribbon
CW Industries C0RRS-4018M	2	457.2 mm	1.5 ft	Tin	2.54 µm	100 µin	40	Strain Relief	Unshielded	IDC	DIP to DIP Reversed	Board In Socket (0.6")	0.05 "	1.27 mm	0.1 in	2.54 mm				Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
