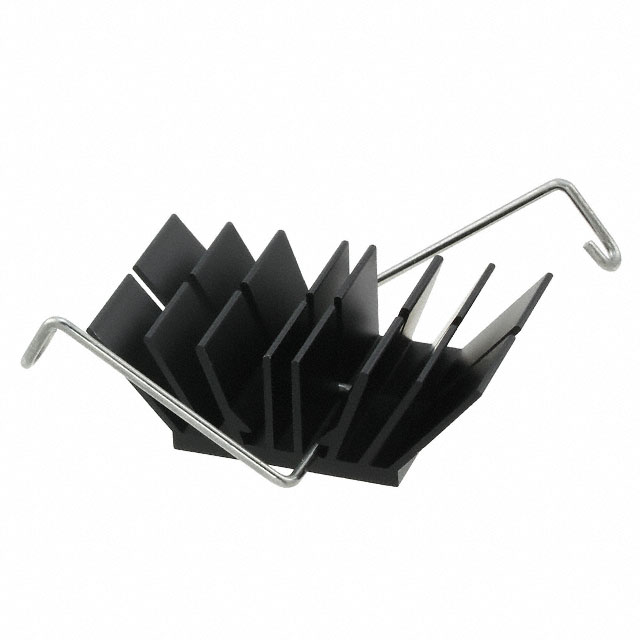

WAVE-23-125
ActiveWakefield-Vette
ANCHOR HEATSINK 23X23X12.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WAVE-23-125
ActiveWakefield-Vette
ANCHOR HEATSINK 23X23X12.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WAVE-23-125 |
|---|---|
| Attachment Method | Clip |
| Fin Height | 12.5 mm |
| Fin Height | 0.492 in |
| Length | 23 mm |
| Length | 0.906 " |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Shape | Angled Fins, Square |
| Thermal Resistance @ Forced Air Flow | 6.76 °C/W, 200 LFM |
| Type | Board Level |
| Width [x] | 0.906 in |
| Width [x] | 23 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.33 | |
| 10 | $ 5.19 | |||
| 25 | $ 5.05 | |||
| 50 | $ 4.77 | |||
| 100 | $ 4.49 | |||
| 250 | $ 4.21 | |||
| 500 | $ 4.07 | |||
| 1000 | $ 3.65 | |||
Description
General part information
WAVE-23 Series
Heat Sink BGA Aluminum Alloy Board Level
