AOC2422

Obsolete

Alpha & Omega Semiconductor Inc.

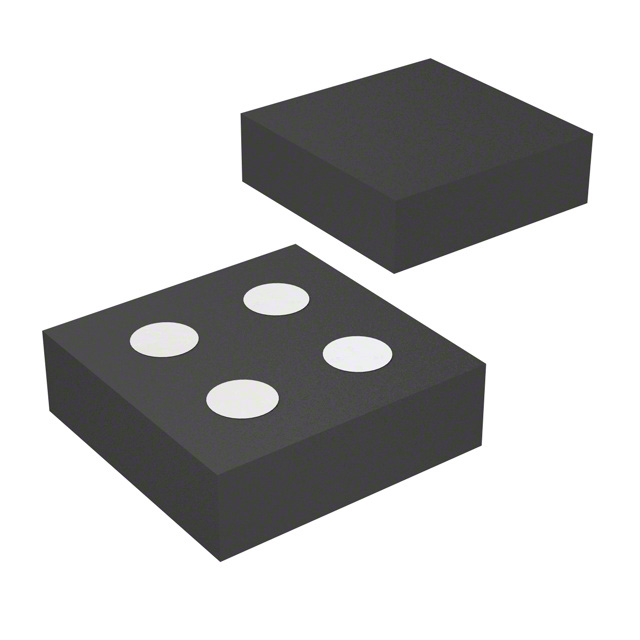

MOSFET N-CH 8V 3.5A 4ALPHADFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 8V 3.5A 4ALPHADFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOC2422

Current - Continuous Drain (Id) @ 25°C	3.5 A
Drain to Source Voltage (Vdss)	8 V
Drive Voltage (Max Rds On, Min Rds On)	2.5 V, 1.2 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	15 nC
Input Capacitance (Ciss) (Max) @ Vds	870 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, No Lead
Power Dissipation (Max) [Max]	600 mW
Rds On (Max) @ Id, Vgs	33 mOhm
Supplier Device Package	4-AlphaDFN (0.97x0.97)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	5 V
Vgs(th) (Max) @ Id	800 mV

Part	FET Type	Mounting Type	Package / Case	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package	Vgs(th) (Max) @ Id [Max]	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs [Max]
Alpha & Omega Semiconductor Inc. AOC2401	P-Channel	Surface Mount	4-SMD No Lead	12 V	10 V	2.5 V	41 mOhm	3 A	-55 °C	150 °C	550 mW	1327 pF	1.3 V	30 V	MOSFET (Metal Oxide)	40 nC	4-AlphaDFN (1.57x1.57)
Alpha & Omega Semiconductor Inc. AOC2413	P-Channel	Surface Mount	4-SMD No Lead	5 V				3.5 A	-55 °C	150 °C	550 mW			8 V	MOSFET (Metal Oxide)		4-AlphaDFN (1.57x1.57)	650 mV	1.2 V 2.5 V	27 nC	1935 pF
Alpha & Omega Semiconductor Inc. AOC2415	P-Channel	Surface Mount	4-SMD No Lead	8 V			33 mOhm	3.5 A	-55 °C	150 °C	550 mW		1 V	20 V	MOSFET (Metal Oxide)	28 nC	4-AlphaDFN (1.57x1.57)		1.5 V 4.5 V		1685 pF
Alpha & Omega Semiconductor Inc. AOC2423	P-Channel	Surface Mount	4-SMD No Lead	12 V	10 V	2.5 V		2 A	-55 °C	150 °C	600 mW		1.2 V	20 V	MOSFET (Metal Oxide)	10 nC	4-AlphaDFN (0.97x0.97)				470 pF	80 mOhm
Alpha & Omega Semiconductor Inc. AOC2422	N-Channel	Surface Mount	4-SMD No Lead	5 V			33 mOhm	3.5 A	-55 °C	150 °C	600 mW		800 mV	8 V	MOSFET (Metal Oxide)		4-AlphaDFN (0.97x0.97)		1.2 V 2.5 V	15 nC	870 pF
