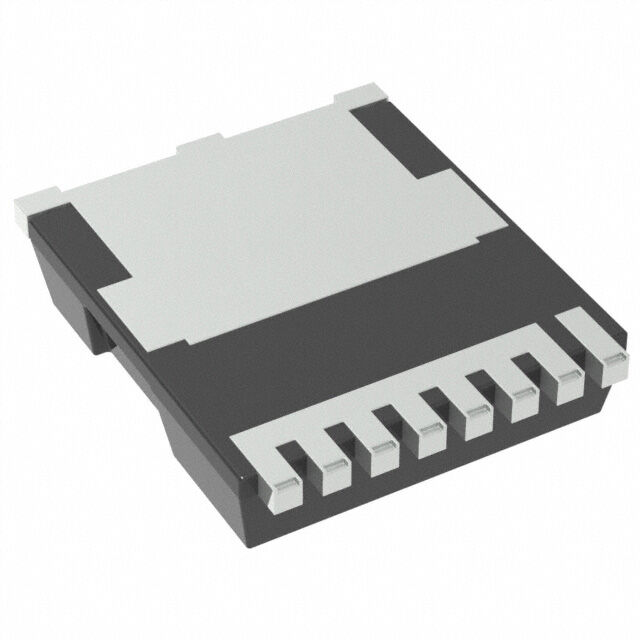

AOTL66518

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 150V 214A

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 150V 214A

Technical Specifications

Parameters and characteristics for this part

Specification	AOTL66518

Current - Continuous Drain (Id) @ 25°C	214 A
Drain to Source Voltage (Vdss)	150 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	115 nC
Input Capacitance (Ciss) (Max) @ Vds	6460 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerSFN
Power Dissipation (Max)	500 W
Rds On (Max) @ Id, Vgs	4.3 mOhm
Supplier Device Package	TOLLA
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.7 V

Part	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Power Dissipation (Max)	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Mounting Type	Technology	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Package / Case
Alpha & Omega Semiconductor Inc. AOTL66518	20 V	214 A	4.3 mOhm	-55 °C	175 ░C	115 nC	3.7 V	500 W	N-Channel	6460 pF	TOLLA	Surface Mount	MOSFET (Metal Oxide)	150 V	10 V	8-PowerSFN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 150 V 214A (Tc) 500W (Tc) Surface Mount TOLLA
