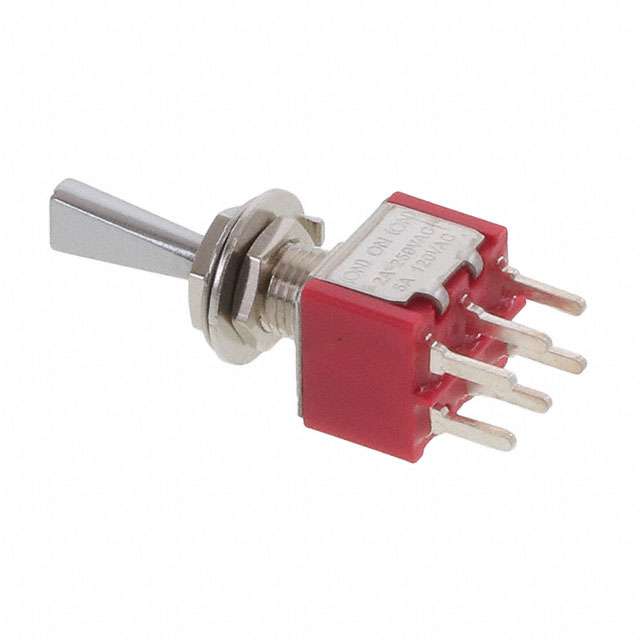

100DP8T6B11M2QEH

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	100DP8T6B11M2QEH

Actuator Length [x]	12.3 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flat Anti-Rotation
Bushing Thread	1/4-40
Circuit	SP3T
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	Mom-On-Mom
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Bushing Thread	Actuator Length [x]	Current Rating (Amps)	Actuator Material	Mounting Type	Illumination	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Electrical Life	Voltage Rating - AC	Actuator Type	Features	Termination Style	Panel Cutout Dimensions [diameter]
E-Switch 100DP8T1B1M2QE	1/4-40	10.41 mm	5 A	Brass Chrome Plated	Through Hole	Non-Illuminated	28 V	-30 ░C	85 °C	Mom-On-Mom	SP3T	40000 Cycles	120 V	Standard Round	Jumper needed to achieve triple throw	PC Pin	0.25 in
E-Switch 100DP8T6B11M2QEH	1/4-40	12.3 mm	5 A	Brass Chrome Plated		Non-Illuminated	28 V	-30 ░C	85 °C	Mom-On-Mom	SP3T	40000 Cycles	120 V	Flat Anti-Rotation	Jumper needed to achieve triple throw	PC Pin	0.25 in
