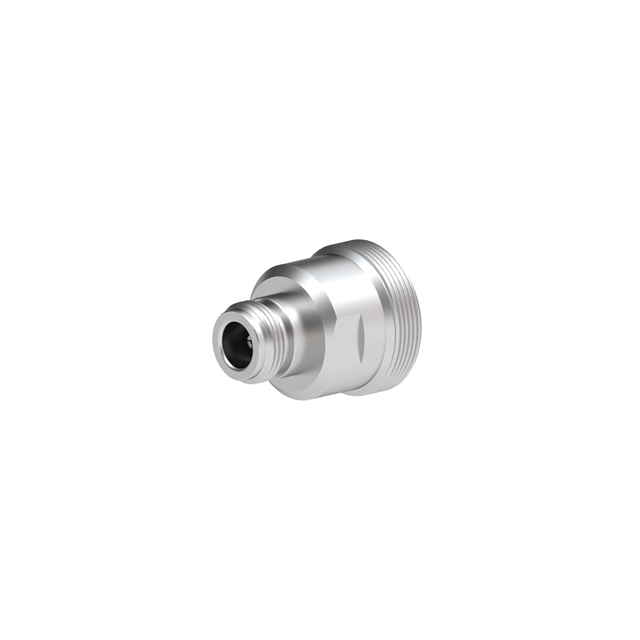

R191723000

Active

Radiall USA, Inc.

N FEMALE - 7-16 FEMALE STRAIGHT

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N FEMALE - 7-16 FEMALE STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	R191723000

Adapter Series	N to 7/16
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Material	Conversion Type	Mating Cycles	Center Contact Plating	Dielectric Material	Impedance	Adapter Series	Center Contact Material	Frequency - Max [Max]	Mounting Type	Body Finish	Center Gender	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Adapter Type	Style
Radiall USA, Inc. R191723000	Brass	Between Series	500	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	N to 7/16	Beryllium Copper	7.5 GHz	Free Hanging (In-Line)	White Bronze	Female to Female	Female Socket N Jack	155 °C	-55 °C	7/16 Jack Female Socket	Jack to Jack	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 107.88

General part information

Adapter Coaxial Connector N Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
