SMP3022-01ETG
ActiveSMC Diode Solutions

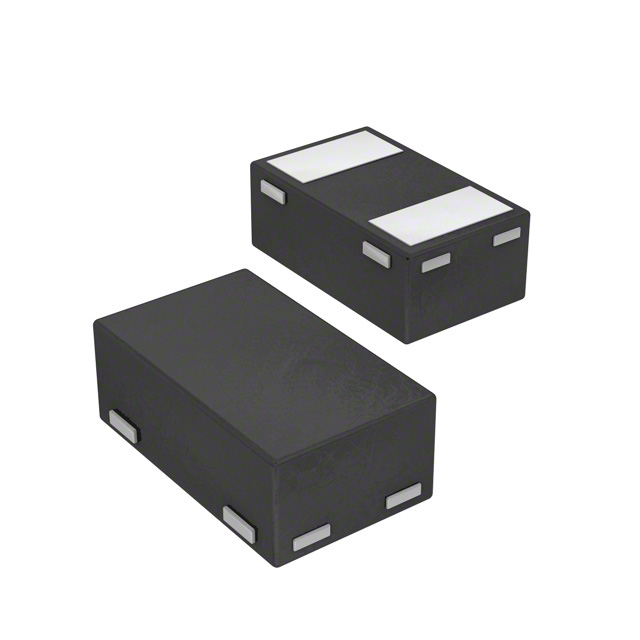

TVS DIODE 5.3VWM 12VC SOD882
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMP3022-01ETG
ActiveSMC Diode Solutions
TVS DIODE 5.3VWM 12VC SOD882
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP3022-01ETG |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.5 pF |
| Current - Peak Pulse (10/1000µs) | 3 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | SOD-882 |
| Power - Peak Pulse | 20 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-882 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 6.8 V |
| Voltage - Clamping (Max) @ Ipp | 12 V |
| Voltage - Reverse Standoff (Typ) | 5.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| 2000 | $ 0.18 | |||
| 5000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| 2000 | $ 0.18 | |||
| 5000 | $ 0.16 | |||
| Tape & Reel (TR) | 10000 | $ 0.15 | ||
| 20000 | $ 0.14 | |||
| 30000 | $ 0.13 | |||
| 50000 | $ 0.13 | |||
Description
General part information
SMP3022 Series
12V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882
Documents
Technical documentation and resources
