DF1-10P-2.5DSA(05)

LTB

Hirose Electric USA, Inc.

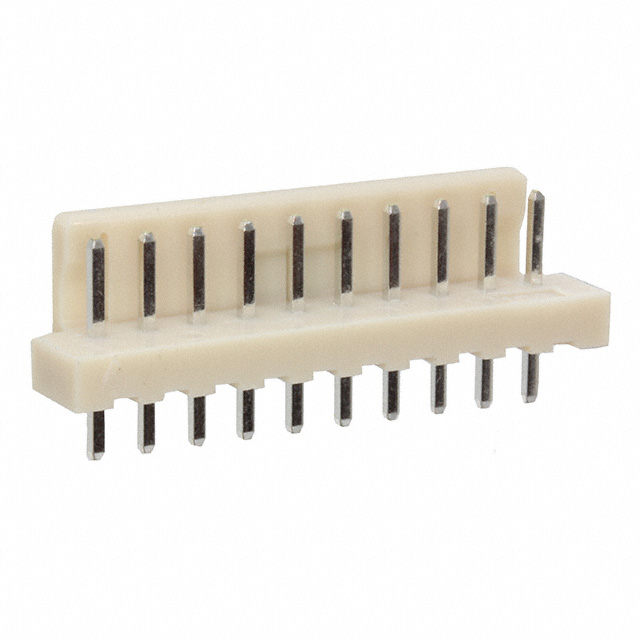

BOARD CONNECTOR, 10 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, BROWN INSULATOR, ROHS COMPLIANT

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

BOARD CONNECTOR, 10 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, BROWN INSULATOR, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	DF1-10P-2.5DSA(05)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.177 in
Contact Length - Mating	4.5 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	10 mm
Overall Contact Length	0.394 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Mounting Type	Style	Number of Positions Loaded	Contact Finish - Post	Insulation Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Shrouding	Contact Material	Contact Type	Fastening Type	Contact Shape	Number of Positions	Material Flammability Rating	Termination	Insulation Color	Pitch - Mating	Pitch - Mating
Hirose Electric USA, Inc. DF1-10P-2.5DSA(05)	Header	250 VDC	0.118 in	3 mm	1 µm	39.4 µin	0.295 in	7.5 mm	Through Hole	Board to Cable/Wire	All	Tin	Nylon Polyamide (PA)	1	-30 ░C	85 °C	0.177 in	4.5 mm	3 A	10 mm	0.394 in	Shrouded - 1 Wall	Brass	Male Pin	Friction Lock	Square	10	UL94 V-0	Solder	Brown	2.5 mm	0.098 in
