TR9WI750T00-IMR6B

Active

GlobTek, Inc.

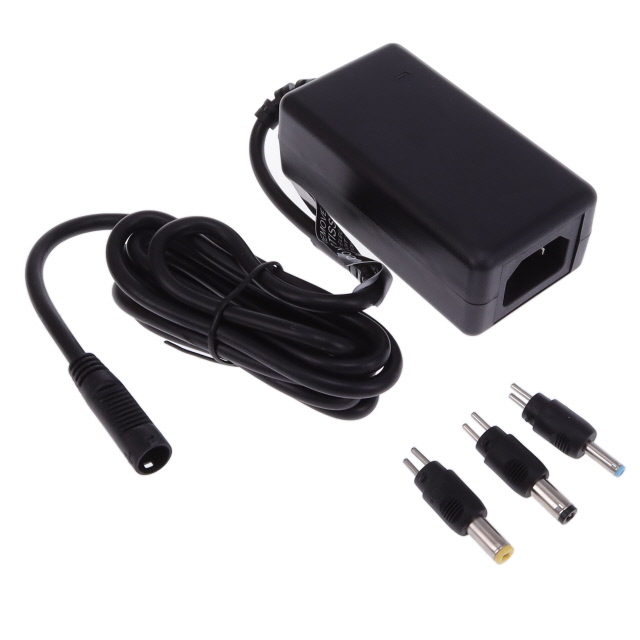

AC/DC DESKTOP ADAPTER 24V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9WI750T00-IMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	S-Mark, UL, FCC, LPS, VCCI, ETL, CCC, RCM, EAC, CE, CB, UKRSepro, PSE, cETLus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	750 mA
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C18
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Polarization	Either
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	87 mm
Size / Dimension [x]	3.43 in
Size / Dimension [y]	1.83 in
Size / Dimension [y]	46.5 mm
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Standard Number	60601-1-2, 61558-1, 60335-1, 60601-1-11, 1310, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Region Utilized	Efficiency	Polarization	Output Connector	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Input Type	No Load Power Consumption [Max]	Voltage - Output	Standard Number	Form	Approval Agency	Current - Output (Max) [Max]
GlobTek, Inc. TR9WI750T00-IMR6B	1.5 m	59 in	-10 °C	40 °C	IEC 320-C18	International	CoC Tier 2 Level VI	Either	1.3mm x 3.5mm Barrel Plug Kit	1.83 in	1.26 in	32 mm	87 mm	46.5 mm	3.43 in	18 W	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical	Cord	75 mW	24 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	Desktop (Class II)	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL VCCI	750 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 18 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
