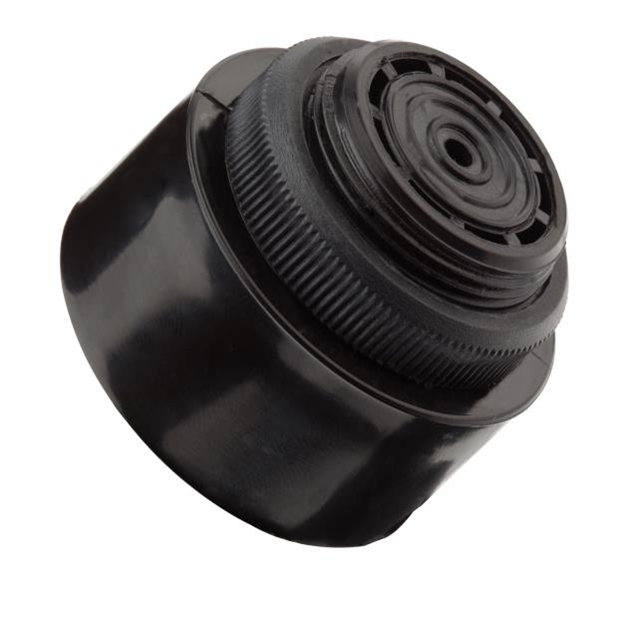

FM-12B-901A
ActiveEast Electronics
BUZZER 12V 43MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM-12B-901A
ActiveEast Electronics
BUZZER 12V 43MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FM-12B-901A |
|---|---|
| Current - Supply | 32 mA |
| Frequency | 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 32.8 mm |
| Height - Seated (Max) [Max] [z] | 1.291 in |
| Mounting Type | Through Hole |
| Operating Mode | Pulse, Fast |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 43 mm |
| Size / Dimension [diameter] | 1.693 in |
| Sound Pressure Level (SPL) | 90 dB |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.16 | |
| 100 | $ 4.07 | |||
| 1000 | $ 3.33 | |||
Description
General part information
FM-12B Series
Buzzers 12 V 32mA 2.9kHz 90dB @ 12V, 60cm Through Hole PC Pins
