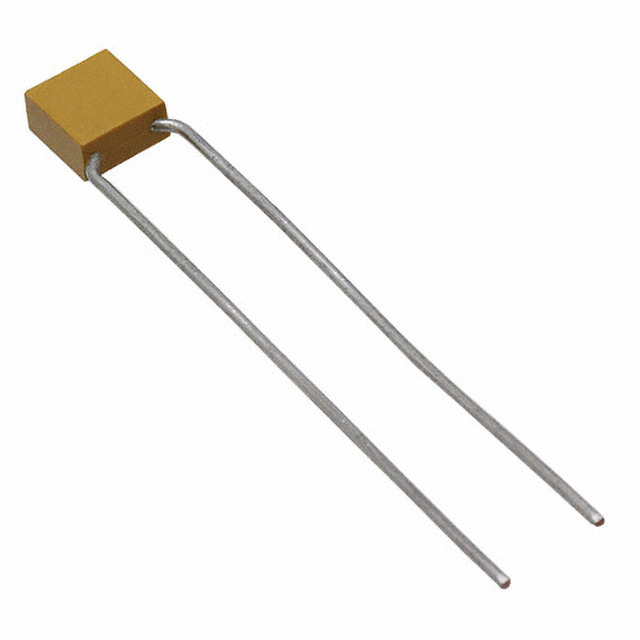

CCR05CG101JR
ActiveKEMET
CAP CER 100PF 200V 5% RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
CCR05CG101JR
ActiveKEMET
CAP CER 100PF 200V 5% RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CCR05CG101JR |
|---|---|
| Applications | High Reliability |
| Capacitance | 100 pF |
| Failure Rate | R (0.01%) |
| Height - Seated (Max) [Max] [z] | 5.08 mm |
| Height - Seated (Max) [Max] [z] | 0.2 " |
| Lead Spacing | 5.08 mm |
| Lead Spacing | 0.2 in |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.19 " |
| Size / Dimension [x] | 4.83 mm |
| Size / Dimension [y] | 0.09 " |
| Size / Dimension [y] | 2.29 mm |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
| 10 | $ 1.72 | |||
| 100 | $ 1.31 | |||
| 1000 | $ 1.10 | |||
| 2500 | $ 1.04 | |||
| 5000 | $ 1.01 | |||
Description
General part information
CCR05CG Series
100 pF ±5% 200V Ceramic Capacitor C0G, NP0 Radial
