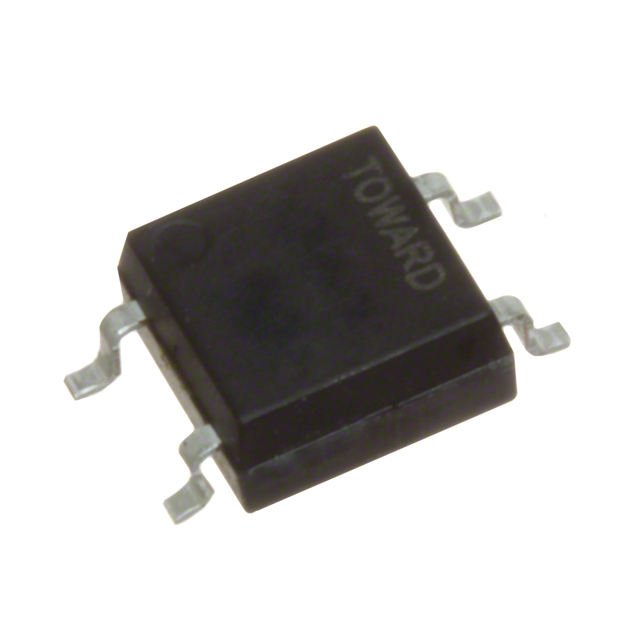

AB23RS
ActiveComus International
SSR RELAY SPST-NO 170MA 0-250V
Deep-Dive with AI
Search across all available documentation for this part.
AB23RS
ActiveComus International
SSR RELAY SPST-NO 170MA 0-250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AB23RS |
|---|---|
| Approval Agency | UL, cURus |
| Load Current | 170 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 15 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SOP |
| Package / Case | 0.173 in |
| Package / Case | 4.4 mm |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 250 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 100 | $ 4.54 | |
Description
General part information
AB23R Series
Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
