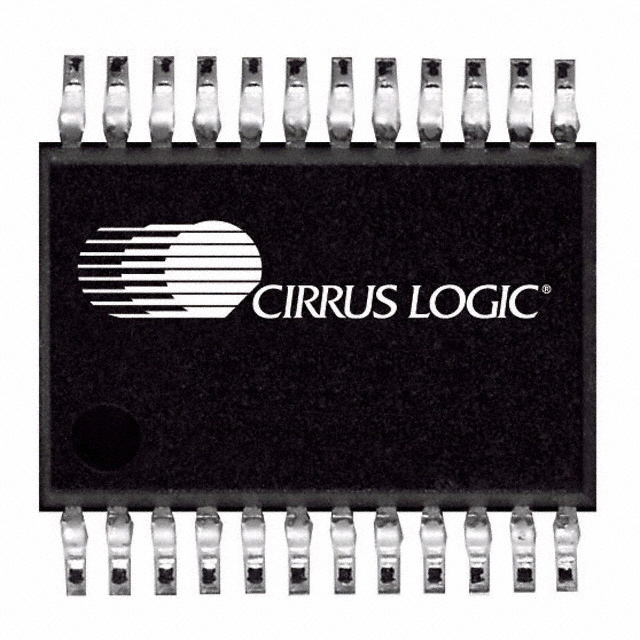

CS5550-ISZ
ActiveCirrus Logic Inc.
IC ADC 24BIT SIGMA-DELTA 24SSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS5550-ISZ
ActiveCirrus Logic Inc.
IC ADC 24BIT SIGMA-DELTA 24SSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS5550-ISZ |
|---|---|
| Architecture | Sigma-Delta |
| Configuration | ADC |
| Data Interface | SPI |
| Features | Simultaneous Sampling |
| Input Type | Differential |
| Mounting Type | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Bits | 24 |
| Number of Inputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SSOP |
| Reference Type | External, Internal |
| Supplier Device Package | 24-SSOP |
| Voltage - Supply, Analog | 5 V |
| Voltage - Supply, Digital [Max] | 5.25 V |
| Voltage - Supply, Digital [Min] | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.34 | |
| 10 | $ 4.89 | |||
| 25 | $ 5.48 | |||
| 59 | $ 3.77 | |||
| 100 | $ 4.75 | |||
| 118 | $ 3.46 | |||
| 250 | $ 4.50 | |||
| 295 | $ 3.12 | |||
| 531 | $ 3.01 | |||
Description
General part information
CS5550 Series
24 Bit Analog to Digital Converter 2 Input 2 Sigma-Delta 24-SSOP
