ABTAAT0-ED08PN-0000

Active

ODU

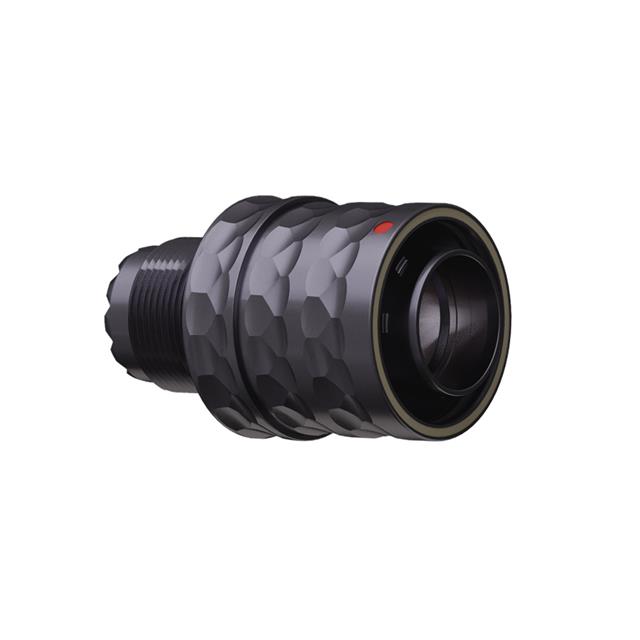

ODU AMC SERIES T BREAK-AWAY PLUG

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T BREAK-AWAY PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ABTAAT0-ED08PN-0000

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	9
Shielding	Shielded
Termination	Crimp
Voltage Rating	50 V

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Features	Contact Finish - Mating	Primary Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Termination	Shell Size - Insert	Fastening Type	Shielding	Contact Material	Color	Shell Finish	Voltage Rating	Connector Type	Number of Positions	Orientation
ODU ABTAAT0-E010PN-0000	1.27 µm	50 µin	Polyetheretherketone (PEEK)	UL94 V-0	Free Hanging (In-Line)	5 A	Backshell Coupling Nut	Gold	Metal	IP68 IP69K	-65 ░C	347 °F	Aluminum	Crimp	9	Push-Pull	Shielded	Copper Alloy	Silver	Tin Nickel	50 V	Male Pins Plug	10	A
ODU ABTAAT0-ED08PN-0000	1.27 µm	50 µin	Polyetheretherketone (PEEK)	UL94 V-0	Free Hanging (In-Line)	5 A	Backshell Coupling Nut	Gold	Metal	IP68 IP69K	-65 ░C	347 °F	Aluminum	Crimp	9	Push-Pull	Shielded	Copper Alloy	Silver	Tin Nickel	50 V	Male Pins Plug	8	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Crimp
