A 24-LC/7-T
ActiveAssmann WSW Components

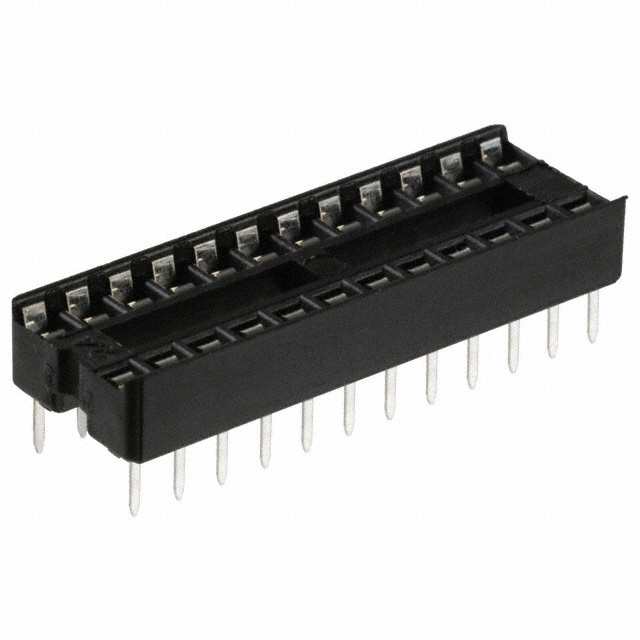

CONN IC DIP SOCKET 24POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A 24-LC/7-T
ActiveAssmann WSW Components
CONN IC DIP SOCKET 24POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A 24-LC/7-T |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 60 Áin |
| Contact Finish Thickness - Mating | 1.52 Ám |
| Contact Finish Thickness - Post | 60 µin |
| Contact Finish Thickness - Post | 1.52 µm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Contact Resistance | 30 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 24 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.15 mm |
| Termination Post Length | 0.124 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.47 | |
| 20 | $ 0.41 | |||
| 40 | $ 0.35 | |||
| 100 | $ 0.33 | |||
| 260 | $ 0.31 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.24 | |||
| 2500 | $ 0.22 | |||
Description
General part information
A 24-LC Series
24 (2 x 12) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
