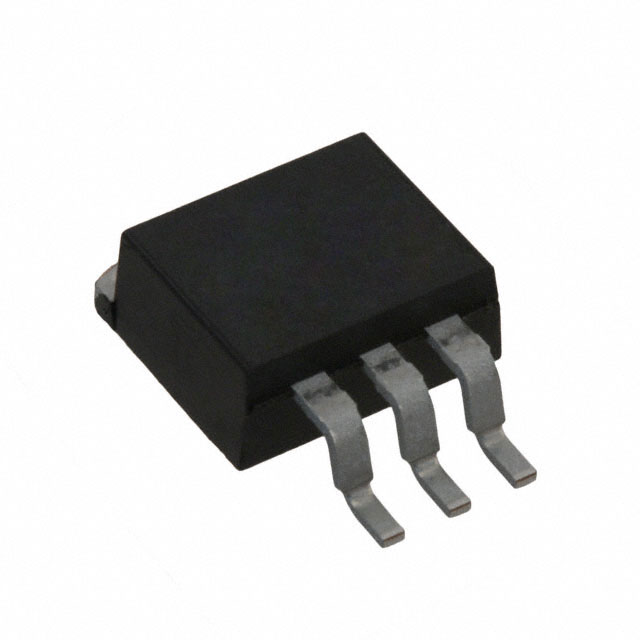

SC1566IM-2.5TRT

Obsolete

Semtech Corporation

IC REG LINEAR 2.5V 3A TO263

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC REG LINEAR 2.5V 3A TO263

Technical Specifications

Parameters and characteristics for this part

Specification	SC1566IM-2.5TRT

Current - Output	3 A
Current - Quiescent (Iq)	35 µA
Current - Supply (Max) [Max]	1.75 mA
Mounting Type	Surface Mount
Number of Regulators	1
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-263AA, D2PAK (3 Leads + Tab), TO-263-4
Protection Features	Over Current, Over Temperature
Supplier Device Package	TO-263
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	2.5 V
Voltage Dropout (Max) [Max]	0.6 V

Part	Output Configuration	Mounting Type	Protection Features	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Number of Regulators	Supplier Device Package	Output Type	Voltage Dropout (Max) [Max]	Current - Output	Voltage - Output (Min/Fixed)	Package / Case	Current - Supply (Max) [Max]	Control Features
Semtech Corporation SC1566IT-1.8T	Positive	Through Hole	Over Current Over Temperature	35 µA	5.5 V	1	TO-220	1.81 mOhm	0.6 V	3 A	1.8 V	TO-220-3	1.75 mA
Semtech Corporation SC1566I5M2.5TRT	Positive	Surface Mount	Over Current Over Temperature	35 µA	5.5 V	1	TO-263-5	1.81 mOhm	0.6 V	3 A	2.5 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1.75 mA	Enable
Semtech Corporation SC1566I5T-1.8T	Positive	Through Hole	Over Current Over Temperature	35 µA	5.5 V	1	TO-220-5	1.81 mOhm	0.6 V	3 A	1.8 V	TO-220-5	1.75 mA	Enable
Semtech Corporation SC1566IM-1.8TRT	Positive	Surface Mount	Over Current Over Temperature	35 µA	5.5 V	1	TO-263	1.81 mOhm	0.6 V	3 A	1.8 V	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	1.75 mA
Semtech Corporation SC1566I5M1.8TRT	Positive	Surface Mount	Over Current Over Temperature	35 µA	5.5 V	1	TO-263-5	1.81 mOhm	0.6 V	3 A	1.8 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	1.75 mA	Enable
Semtech Corporation SC1566IM-2.5TRT	Positive	Surface Mount	Over Current Over Temperature	35 µA	5.5 V	1	TO-263	1.81 mOhm	0.6 V	3 A	2.5 V	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	1.75 mA
