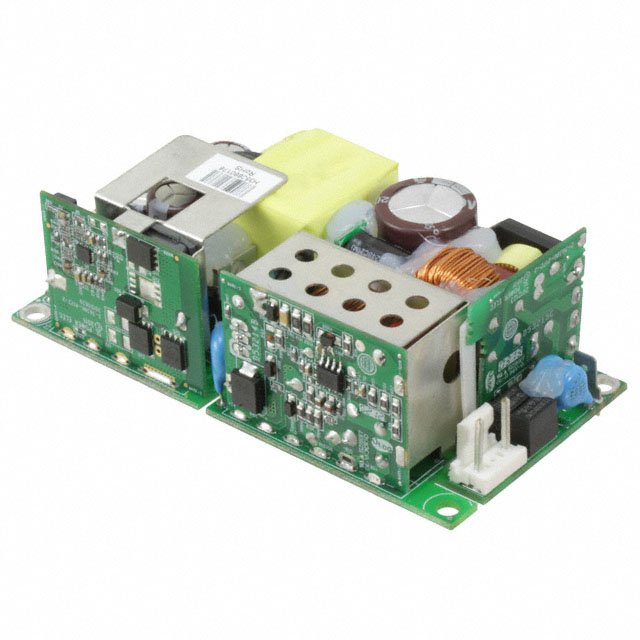

MINT3110A1908K01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 5V +/-24V 80W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MINT3110A1908K01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 5V +/-24V 80W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MINT3110A1908K01 |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Current - Output 1 | 8 A |
| Current - Output 2 | 3 A |
| Efficiency | 87 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 80 W, 110 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | -24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 146.45 | |
| 5 | $ 141.94 | |||
| 10 | $ 137.44 | |||
| 25 | $ 132.93 | |||
| 50 | $ 128.42 | |||
Description
General part information
MINT3110 Series
Open Frame AC DC Converters 3 Output 5V 24V -24V 90 ~ 264 VAC Input
