G17S2510110EU

Active

Amphenol ICC (Commercial Products)

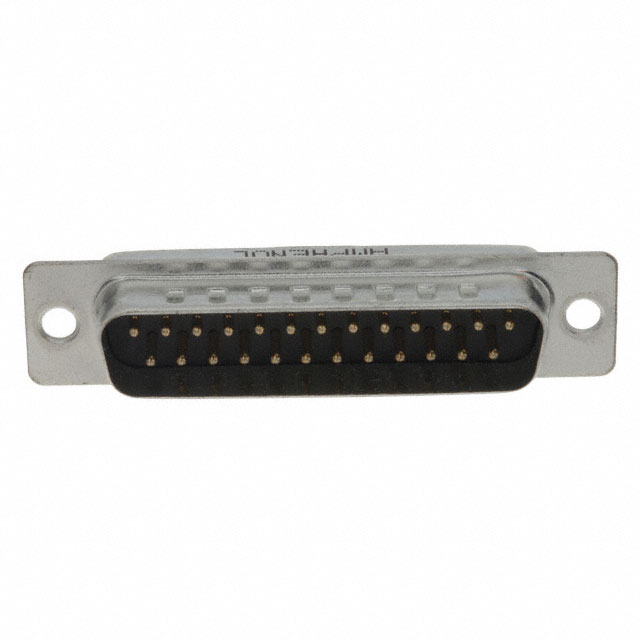

CONN D-SUB PLUG 25POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	G17S2510110EU

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	250 VDC

Part	Color	Current Rating (Amps)	Dielectric Material	Voltage Rating	Features	Number of Rows	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Connector Style	Material Flammability Rating	Contact Type	Contact Material	Mounting Type	Connector Type
Amphenol ICC (Commercial Products) G17S2510110EU	Black	5 A	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC	Grounding Indents	2	Housing/Shell (Unthreaded)	B DB	3	Flash	D-Sub	UL94 V-0	Signal	Copper Alloy	Free Hanging (In-Line)	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
