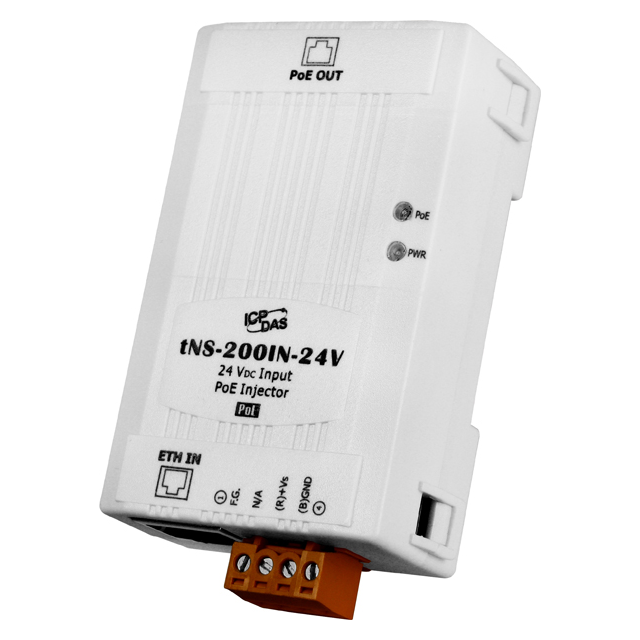

TNS-200IN-24V
ActiveICP DAS USA INC
POE INJECTOR FOR 1 POE PORT 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TNS-200IN-24V
ActiveICP DAS USA INC
POE INJECTOR FOR 1 POE PORT 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TNS-200IN-24V |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3af |
| Current - Output | 320 mA |
| Data Rate [Max] | 100 Mbps |
| Data Rate [Min] | 10 Mbps |
| Input Connector | RJ45 (Data), Terminal Block (Power) |
| Mounting Type | Desktop |
| Number of Ports | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 15.4 W |
| Size / Dimension [x] | 2.05 " |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [y] | 27 mm |
| Size / Dimension [y] | 1.06 in |
| Size / Dimension [z] | 3.39 " |
| Size / Dimension [z] | 86 mm |
| Type | Midspan Injector |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 18 V |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 189.00 | |
Description
General part information
TNS-200 Series
48V Power Over Ethernet (POE) 2 Port Midspan Injector 10/100 Mbps Data Rate
